S25 Vandal resistant selector switches llluminated selector switch, llluminated key switch
Φ25mm vandal resistant selector switches & Key selector switches, compact design, Combine rugged and style.
Features
● Ring-illuminated
● SUS316L stainless steel are available
● High resistance to vibration and impact2-position or 3 position options
● High IP67/69K protection
● Oiltight model are available
● Single or bi-color LEDs available
● Quickly connector and PCB connector are available
● Tüv CE RoHS

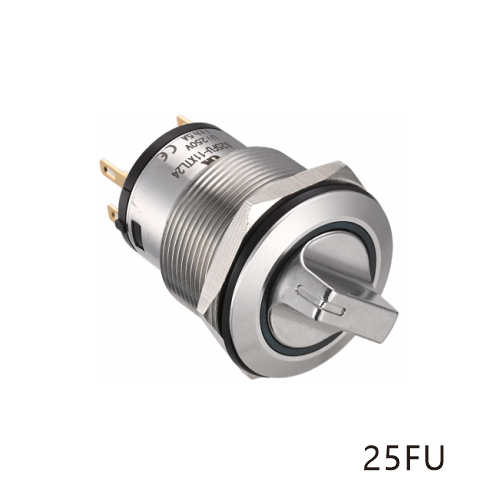

1

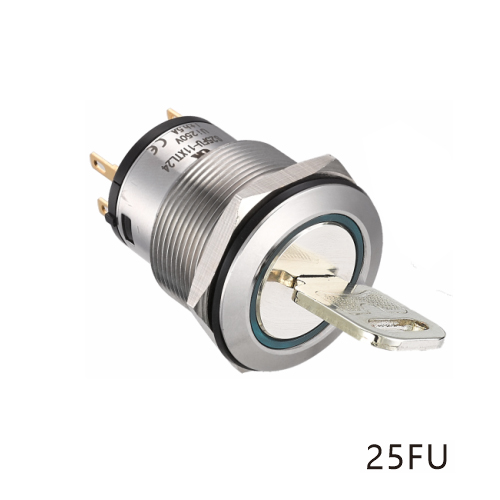

2
技术参数

Product type

Function

Vandal resistant Selector switch

Series

S25

Front

Style

Flush

From

Round

Mounting

Dimension

Φ25mm

Type

Panel mounting

Operating/indicator    part

Lens colors(ring)

Red,Green,Yellow,Blue,white,Amber,Black

Illumination colors

Red,Green,Yellow,Blue,white,Amber

Illumination   voltage

6VACDC\12VACDC\24VACDC   \110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Switching positions

2positions/3positions

Contacts

1NO+1NC,2NO,2NC

Terminal

Soldering/Tab terminal #110, PC board, screw terminal, M12 quick   connector

Other

Protection     degreen

IP67

Complete   Device/Components

Complete evice

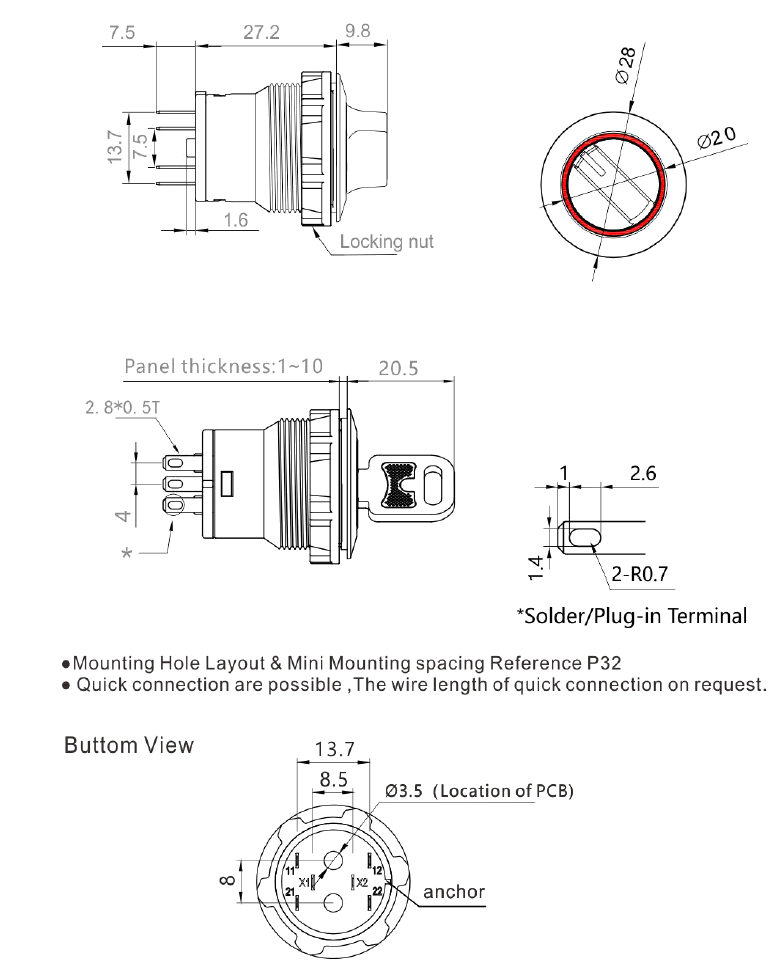

产品尺寸
S25 Vandal resistant selector switches
资料文件
文件名称 类型 发布时间
S25 llluminated selector switch, llluminated key switch .PDF 01/04/2025 下载(669.25 KB)
