S19 vandal resistant Illuminated pushbutton llluminated Pushbutton
Φ19mm vandal resistant Illuminated pushbutton, compact design, Combine rugged and style.
Features
● φ19mm
● Front Bezel: Flat、 Flat/ Exten、 Raised
● Illuminated style: Lens; Ring; Standby
● Action: Momentary; Maintained
● Terminal: Solder/ Plug-in 2.8*0.5
● Gold contacts available for low-level
● applications
● Customised markings
● IP67
● IEC/EN60947-5-1,
IEC/EN60073,IEC/EC60529
1
2
3
4
5
技术参数

Product type

Function

Illuminated Pushbuttons

Series

S19

Front

Style

Flush,Rasied,Flush/extended

From

Round

Mounting

Dimension

Φ19mm

Type

Panel mounting

Operating /LED part

Lens colors

Red\green\yellow\blue\white\Amber

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO+2NC

Terminal

Soldering/Tab terminal #110

Other

Protection degree

IP67

Complete Device/Components

Complete Device

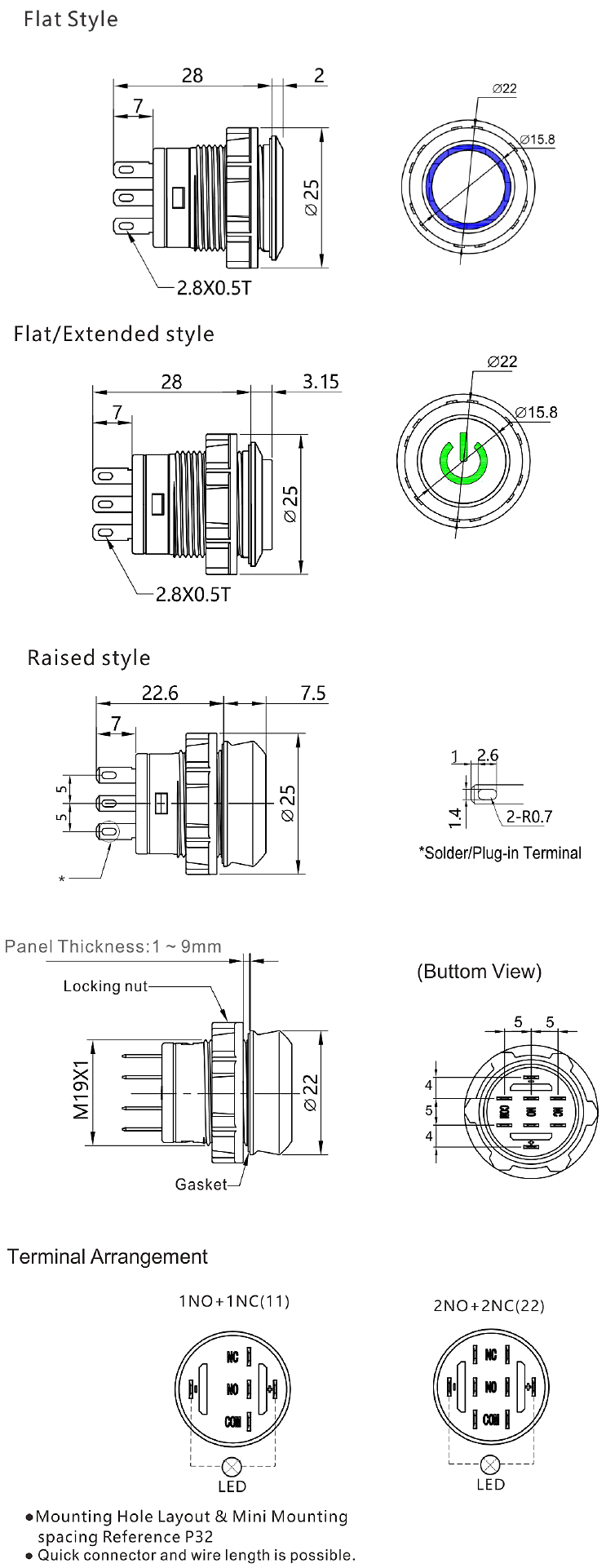

产品尺寸
S19 vandal resistant Illuminated pushbutton
资料文件
文件名称 类型 发布时间
S19 llluminated Pushbutton .PDF 01/04/2025 下载(1.1 MB)
