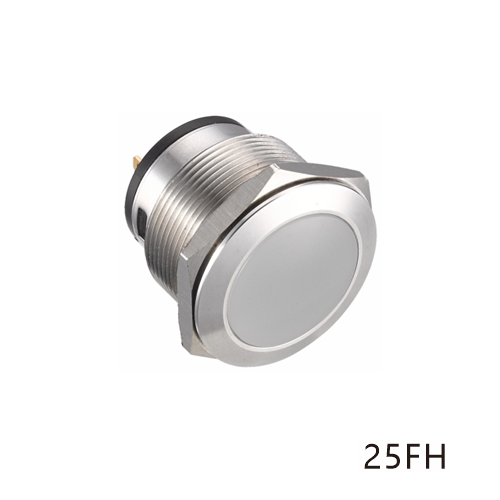

S25 Vandal resistant Indicator Indicators
Φ25mm vandal resistant Indicator, compact design, Combine rugged and style.
Features
● Translucent face appears gray when off, to avoide false indication from ambient light.
● Si-color, Bi-color, Tri-color are available
● Models rated to IP68 and IP69K for use in harsh environments
● Oiltight are available
● Available with PNP or NPN input, depending on model
1
技术参数

Product type

Function

Indicator

Series

S25

Front

Style

Flush/Rasied

From

Round

Mounting

Dimension

Φ25mm

Type

Panel mounting

Operating/LEN   part

Lens colors

opaque

LED colors

Red\green\yellow\blue\white\amber

LED voltage

6VACDC\24VACDC\110VACDC\220VACDC

Other

Terminal

Soldering/Tab terminal #110, PC board, screw terminal, M12 quick connector

Protection degreen

IP67

Complete   Device/Components

Complete Device

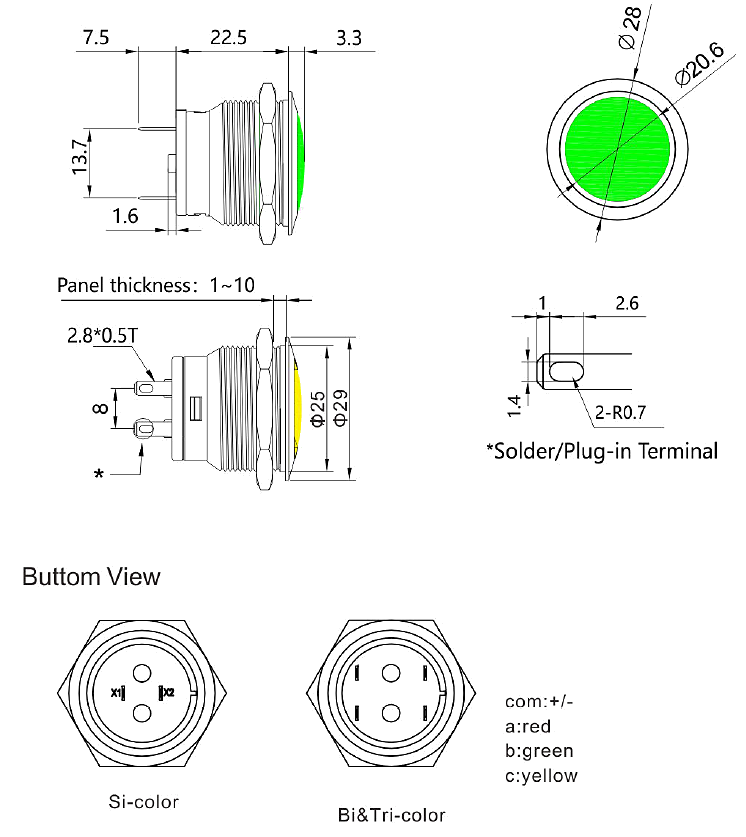

产品尺寸
S25 Vandal resistant Indicator
资料文件
文件名称 类型 发布时间
S25 Pilot lamp .PDF 01/04/2025 下载(601.19 KB)
