LS1806 Industrial handle lndustrial Handle & Safety Control System
LS1806 series Industrial handle,with mechanical , pneumatic or electrical function. all the connections for the buttons,emergency stop switches and LEDs are routed out of the handle so that the customer can use all the functions individually.
Features
● Emergency stop & Push button
● Rated Voltage(Ue)& Current (le):24VAC/DC 1A
● Operating voltage LED: 24V
● Operating Extremes: 5-55Hz, Amplitude 0.5mm
● Operating Temperature: - 25℃~+40℃
● Operating Humidity: 40~85%RH
● Connection:5/8-pin or 8/12-pin connector positioned at the tubular axle of the handle ledge in the handle shank.

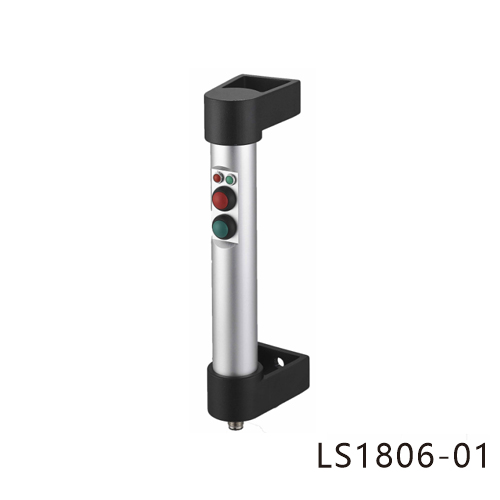

1

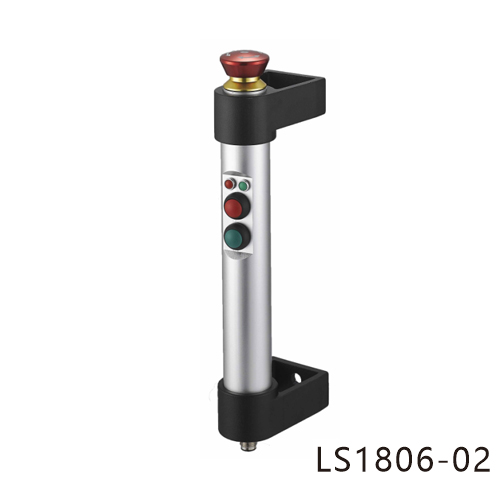

2
技术参数

Product type

Function

Industrial handle

Series

LS1806

Material and surface

Handle ledge

Aluminium round tube black anodized

Handle shanks

Aluminium black anodized

Function elements

Emergency stop switch

S22 Series

Buttons

S12 series

LEDs

M6 Series

connections

M12 quick connection 8pin or 12pin

Other

Protection degree

IP65\IP67

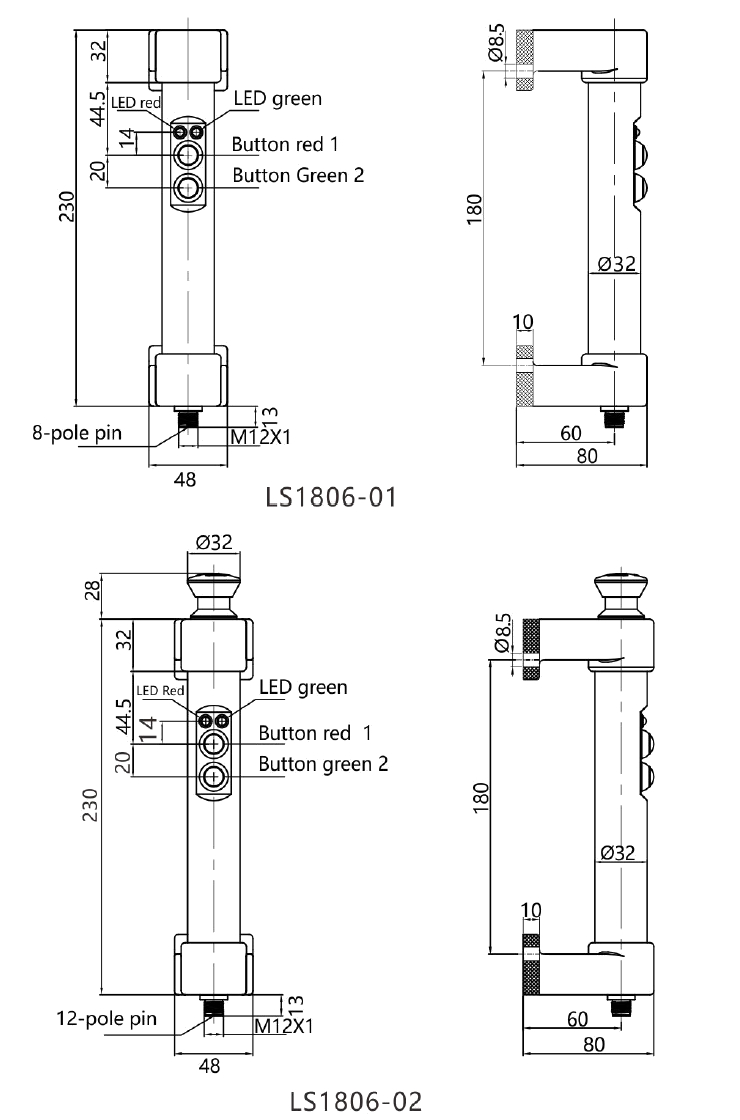

产品尺寸
LS1806 Industrial handle
资料文件
文件名称 类型 发布时间
LS1806 lndustrial Handle & Safety Control System .PDF 01/04/2025 下载(520.85 KB)
