AF16B Buzzer
Buzzers with 80dB steady sound.
Advantages
Compact design, Easy to mount
Illumination optional
continuous or intermittent tone
High sound pressure
Very long service life for electrical and audio components
Features
●round ,square, rectangular optain sharp, flat mounting
● Available in 5V,12V,24VACDC
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40
Applications
Machinery
Automation

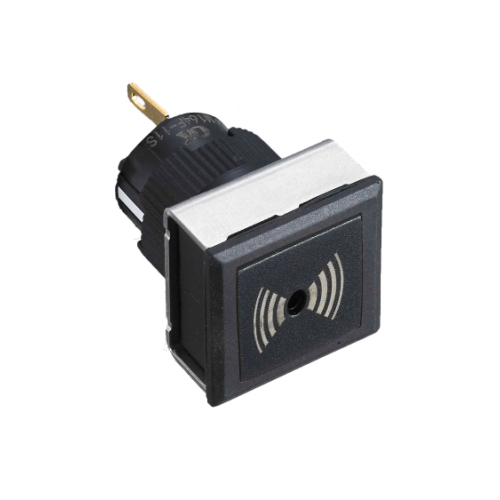

图1

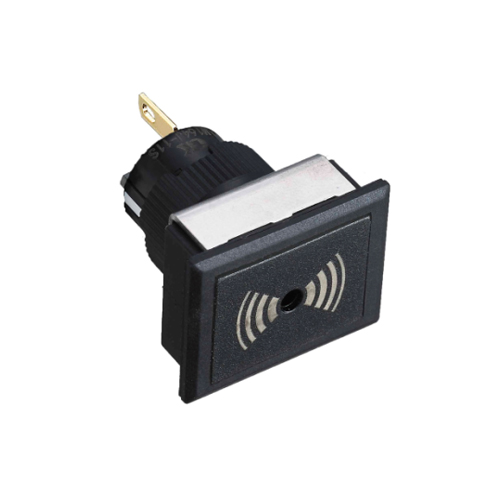

图2
技术参数

Product type

Function

Buzzer,

Series

AF16B

Front

Style

Flush

From

Round/squre/rectangular

Mounting

Dimension

Φ19mm/19mmx19mm/19mmx24mm

Type

Panel mounting

Operating /LED part

Lens colors

black\red

Illumination Colors

red

Illumination voltage

6VACDC\12VACDC\24VACDC

Other

Terminal

Soldering terminal

Protection degree

IP40

Complete Device/Components

Complete Device

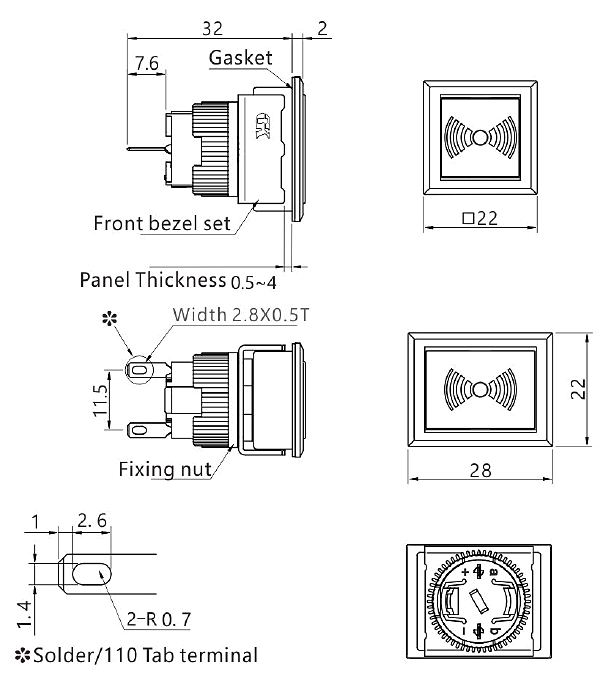

产品尺寸
AF16B
资料文件
文件名称 类型 发布时间
AF16B Buzzer .PDF 12/30/2024 下载(583.51 KB)
