PBH-22 Selector switches Short-handle Selector Switches llluminated Selector Switches
Features
● φ22mm
● Front bezel (Aluminium): standard, circular Holder : Metal, Plastic, Nut
● Self-hold or spring return
● Knob colour choise
● Two and three positions
● Illuminated type choise
● IEC/EN60947-5-1,UL 508,IEC/EN 60073,IEC/EN60529

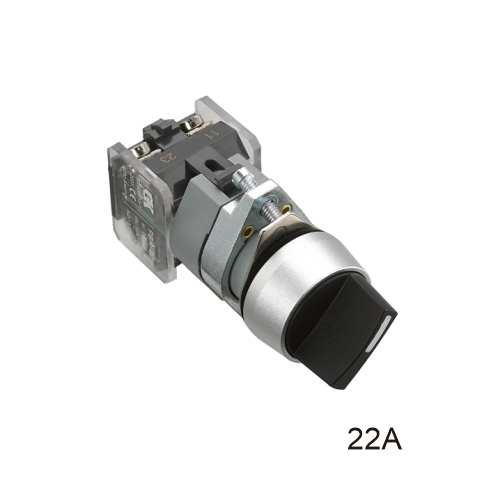

1

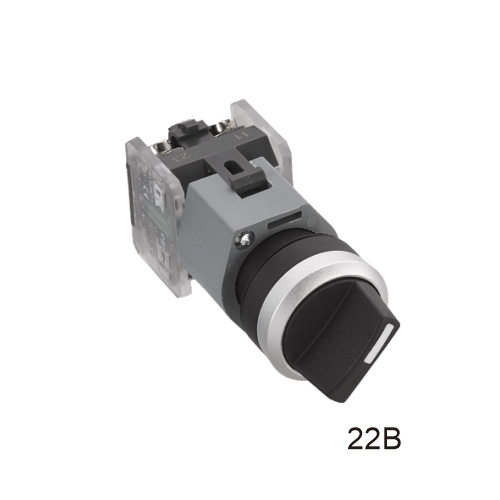

2

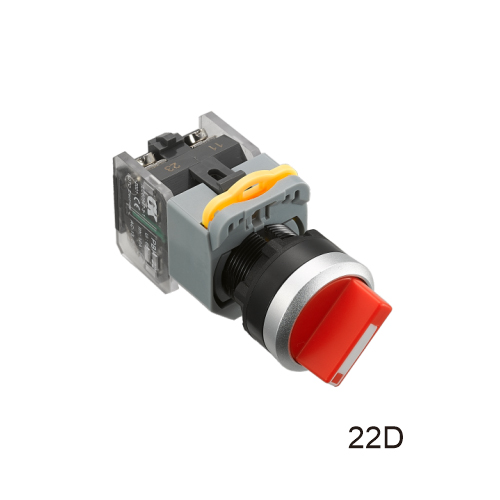

3

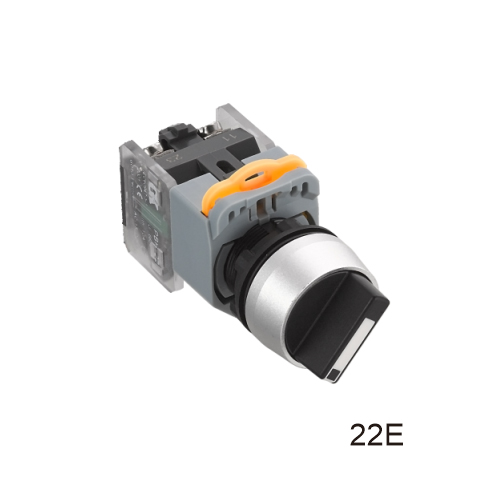

4
技术参数

Product type

Function

Selector switches Illuminated Selector switches

Series

PBH-22

Front

Style

Rasied

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED part

Lens colors

Red\green\yellow\blue\white

Illumination shape

Short handle

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination     voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Switching positions2 positions/3 posistions

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

screw terminal

Other

Protection degree

IP54

Complete     Device/Components

Complete Device

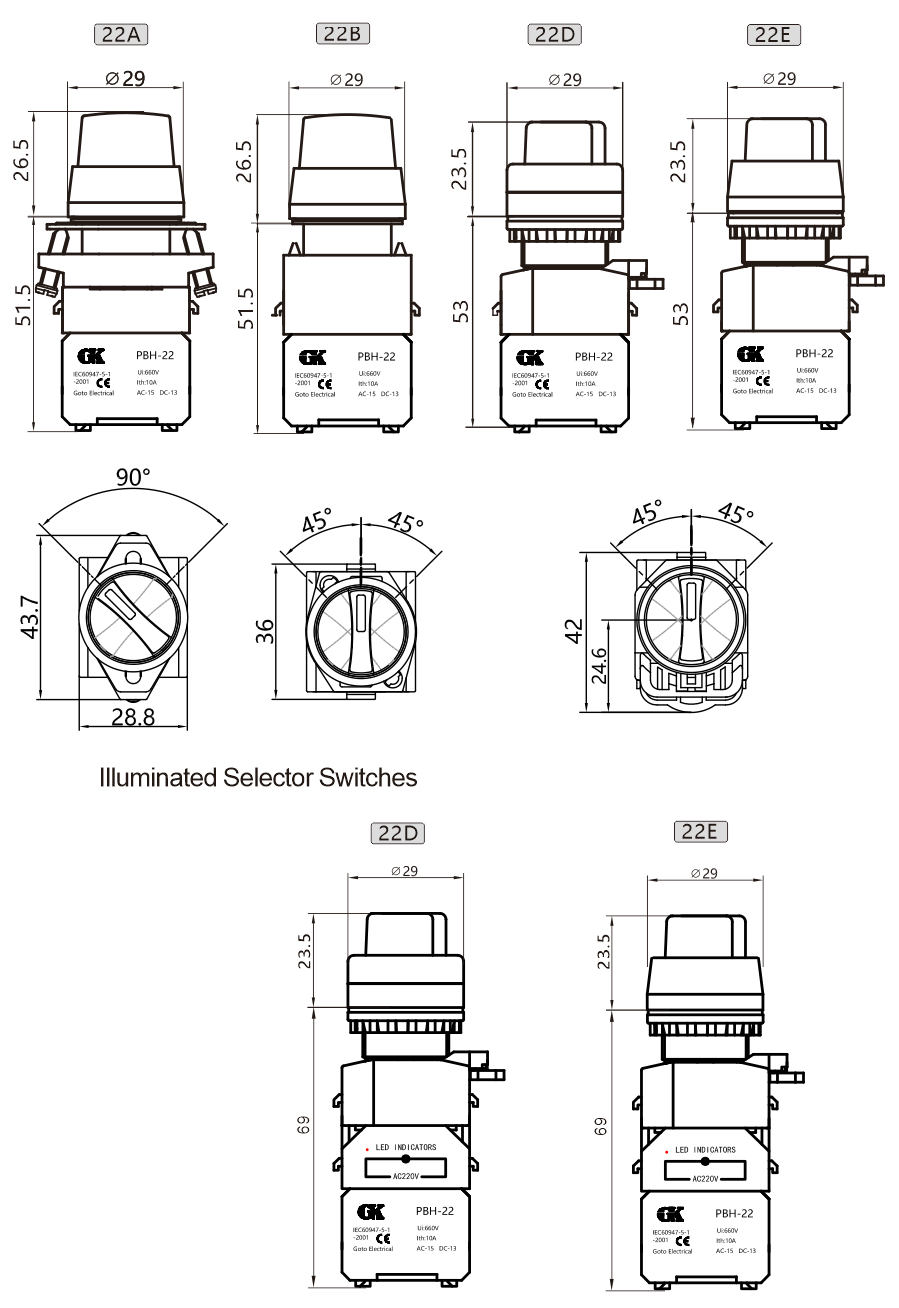

产品尺寸
PBH-22 Selector switches
资料文件
文件名称 类型 发布时间
Type PBH Short-handle Selector Switches llluminated Selector Switches .PDF 01/07/2025 下载(682.73 KB)
