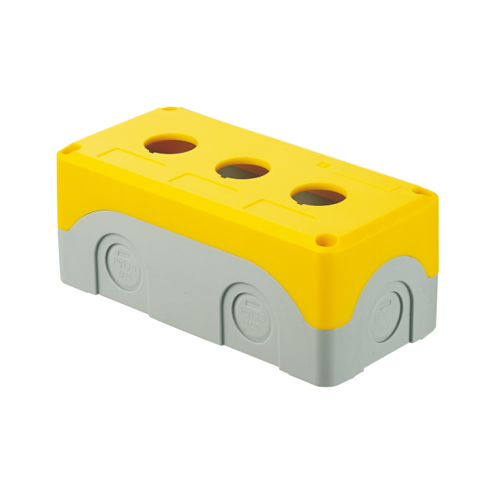

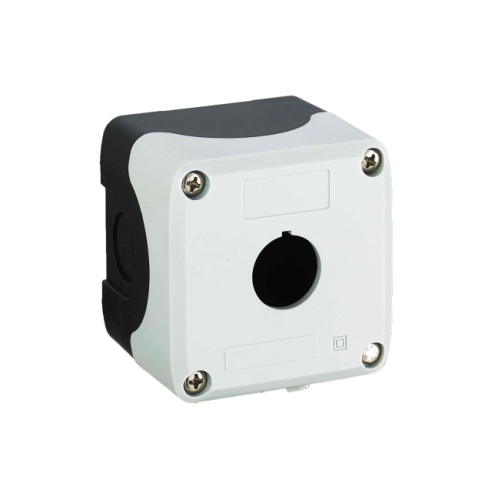

PB Series Control Box Yellow/Gery
PB series control box are device that users mainpulte type to initiate the complete shut down of a machine
Features
● Two insulation ways
● IP65
● Max.5 hole
● PG13.5/M20 cable gland
● 4 Unloseable screws
● IEC/EN60947-5-1
1
2
技术参数

Color

Based: Black Grey.

Cover: Grey Yellow

Material

PC

Max. hole quantitly

5

Mounting cut-off

φ22mm

Cable bone

PG13.5/M20

Nameplate

φ60mm

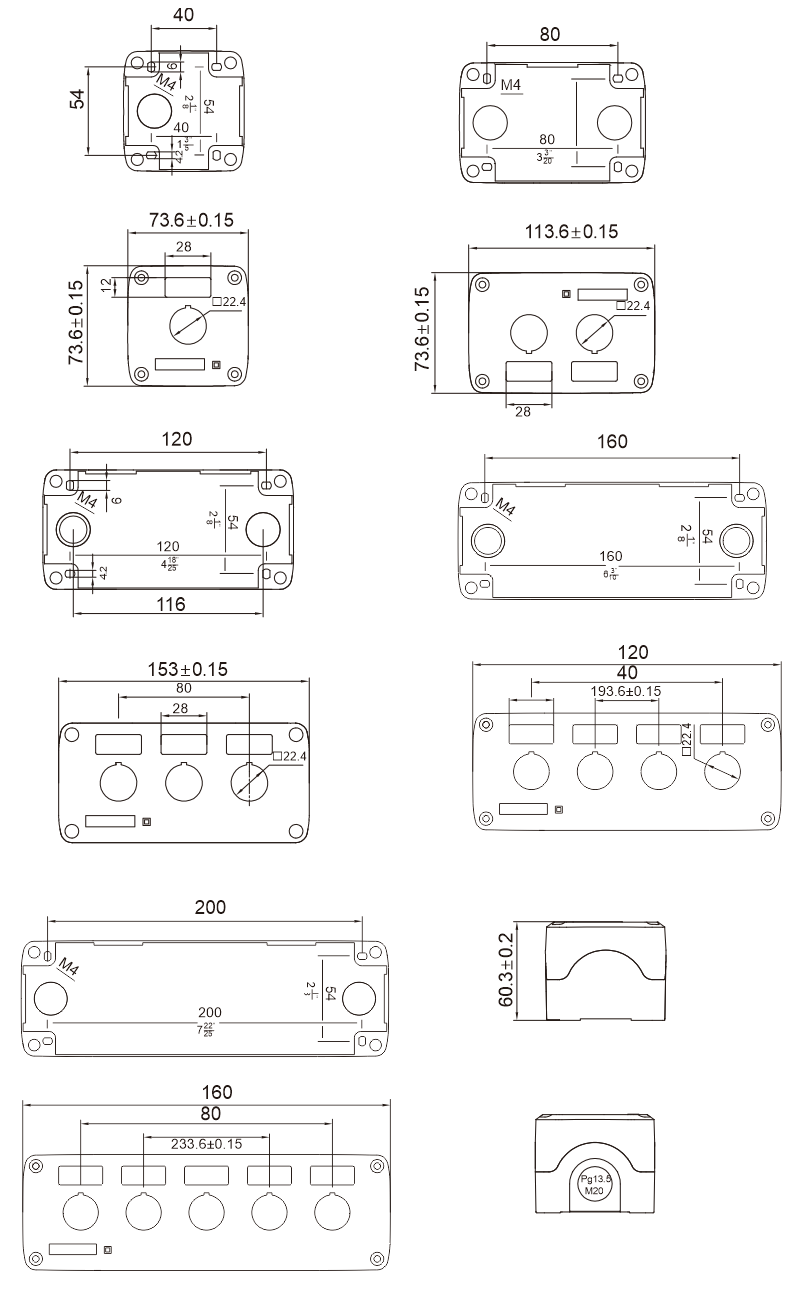

产品尺寸
PB Series
资料文件
文件名称 类型 发布时间
PB Series Control Box YellowGery .PDF 01/07/2025 下载(658.53 KB)
