LS22 indicator compact Indicator lamp
LS22 indicator lamp are Φ22mm ultra bright signal light, compact design.
Features
● Compact, high-intensity illuminated, reliable LED indicator for safe status indication, for use in many types of applications including machinery, Industr- ial automation, robotics and special vehicles.
● Compact design with a rear panel thickness of only9.5mm to meet the requirements of miniaturization of large sets
● Straight-in fast connection model,PIT wire 0.75mm²
● A variety of colors, red, green, yellow, orange, blue, ice blue, purple and white, are available
● IP67

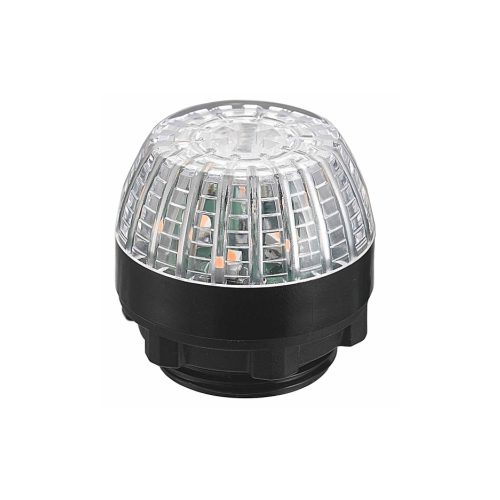

1
技术参数

Code

LS22-D

Mounting size

φ22mm

Working Voltage

24VAC, 12~30VDC

Working Current

<30mA

Function

Steady

Material

Lens-PC, Based-PA, Nut-PA

Operating
environment

WorkingTemperature:-20℃~+55℃ (No Freezing)
Store Temperature:-30℃~+80℃ (No Freezing)
Humidity: 40~85%RH (No Condensation)

Vibration resistance

10~55Hz, Amplitude    0.75mm

Color

Lens: transparent
LED:  Red, Green, Yellow, Blue, Amber, Ice Bule, Violet, White

Connector type

Push-in terminal (PIT) , wire 0.2~1.5mm²

Useful life (reference)

50000 hrs(when 25℃, brightness is 50% below initial value)

Protection class

IP67

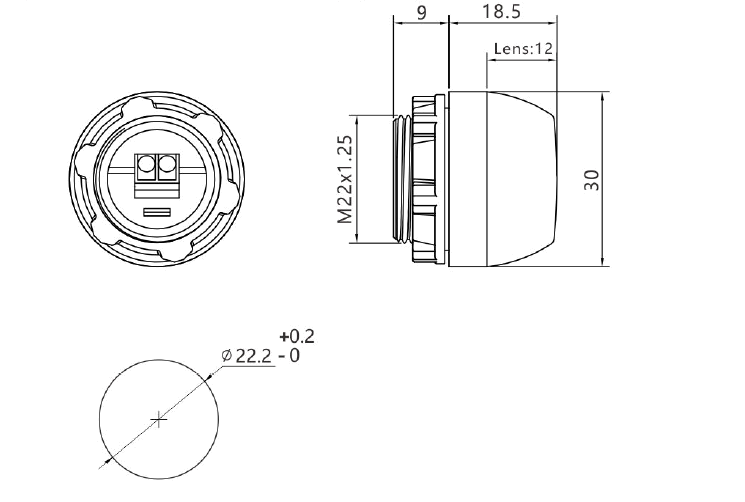

产品尺寸
LS22 indicator compact
资料文件
文件名称 类型 发布时间
LS22 φ22mm lndicator compact High-intensity illuminated .PDF 12/30/2024 下载(663.64 KB)
