● φ16mm
● Material:SUS304
● Switch rating:3A for 250VAC
● Contact:1NO+1NC
● 2Position
● IP67
● IEC/EN 60947-5-1
● IEC/EN 60073, IEC/EC 60529
Product type | Function | Key switches |
Series | S16 | |
Front | Style | Flush/Rasied |
From | Round | |

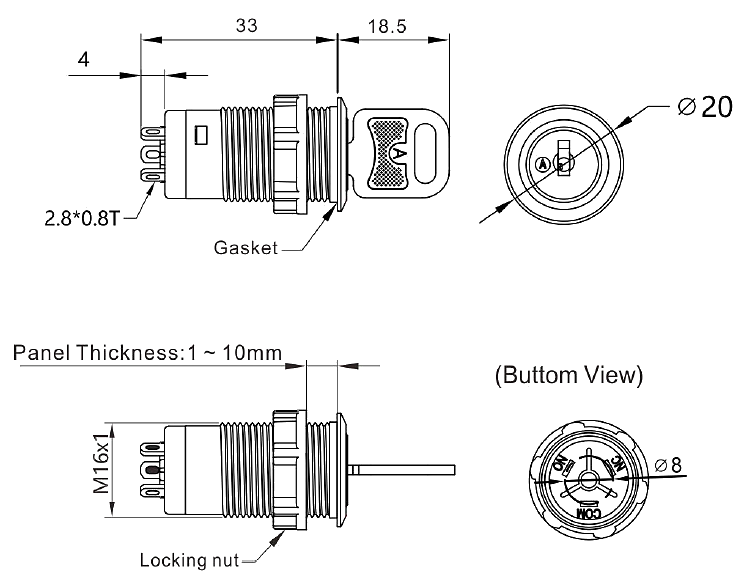

Mounting | Dimension | Φ16mm |
Type | Panel mounting | |
Operating part | Lens colors | Nature |
Illumination | Non-Illuminated | |
Switch Type | Switching action | Momentary/Maintained |
| Switching position | 2 positions | |
Contacts | 1NO+1NC | |
Terminal | Soldering/Tab terminal #110 | |
Other | Protection degreen | IP67 |
Complete Device/Components | Complete evice |
| 文件名称 | 类型 | 发布时间 | |
| S16 Key Switches | 01/04/2025 | 下载(545.07 KB) |
