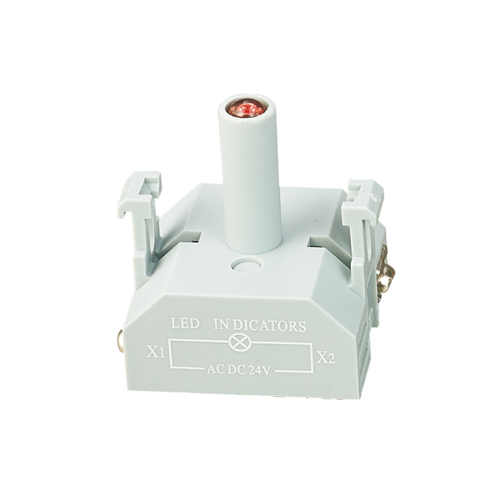

Type PBD Lamp Element
Features
● Different colours choise
● High rellabiliness pure colour LED
● High reliability and durability
● AC and DC voltage
● IEC/EN 60947-5-1
1
技术参数

LED Lamp Ratings

Rated Voltage

6VAC/DC

12VAC/DC

24VAC/DC

110VDC

220VDC

Voltage Category

±20%

Current Draw

8mA

11mA

11mA

—



A;R;W:7mA ; G、PW、S: 5.5mA 10mA    10mA

Color code

R: Red; G: Green; Y: Yellow; B: Blue; W: White; A: Amber

 Lens color are same as    illumination color

Life(reference  value)

 Approx.50,000hours
 (The  luminance reduces to 50% the initial intensity when used on complete DC.)

Internal Circuit


Note:X1and X2 have no polarity

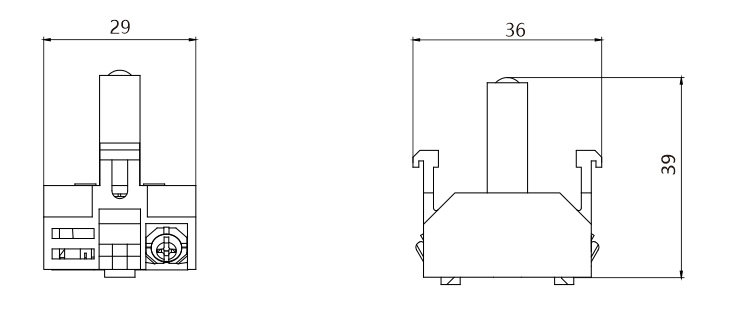

产品尺寸
Type PBD
资料文件
文件名称 类型 发布时间
Type PBD Lamp Element .PDF 01/07/2025 下载(654.31 KB)
