AF16S Mushroom switches
Mushroom switches are mechanical switches that are pushed down to open or to close the electric contacts. They are mostly used to start/stop electric circuits or devices like lamps, motors.etc.
Features
● Removable contact blocks, with up to 3PDT contacts
● Minmum 50,000 operations
● 3 operator shapes: round, square or rectangular
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40; IP65
Applications
Machinery
Automation
Medical
Control panel

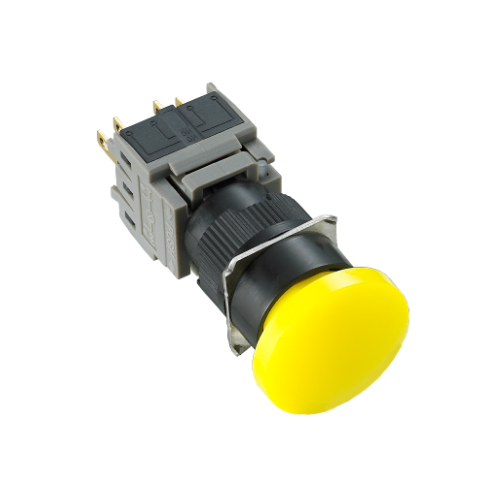

图1

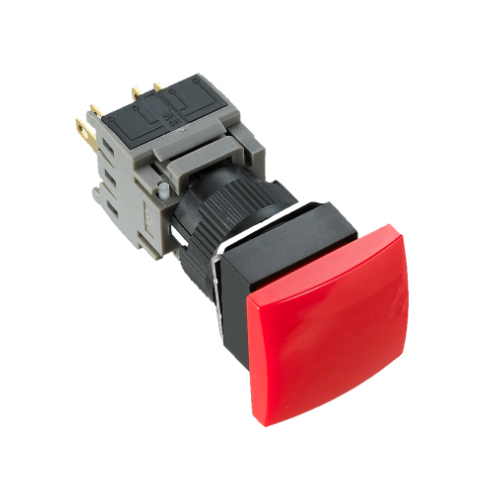

图2

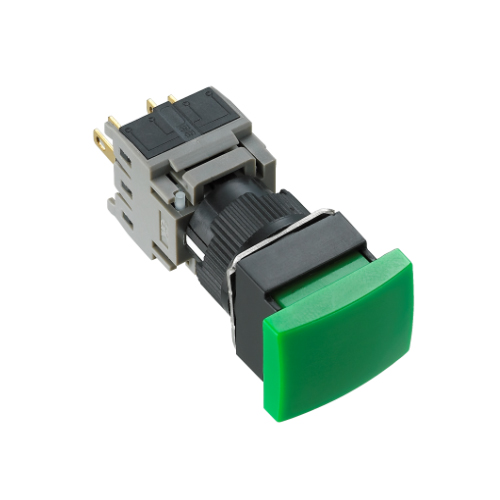

图3
技术参数

Product type

Function

Non-Illuminated Pushbuttons

Series

AF16S

Front

Style

Raised

From

Round/squre/rectangular

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating part

Color

Red\green\yellow\blue\white\Amber\black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

Solder tab compatible with 110# quick disconnects

Other

Protection degreen

IP40,IP65

Complete Device/Components

Complete Device

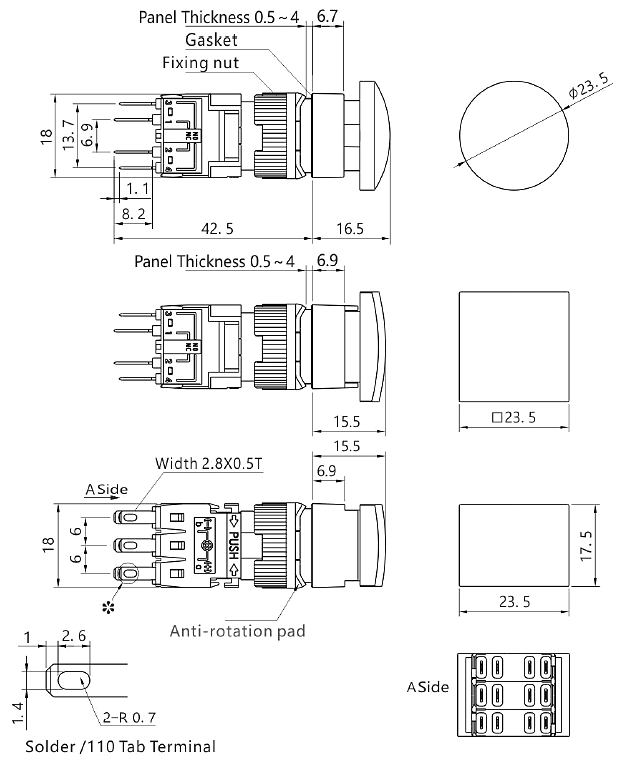

产品尺寸
AF16S
资料文件
文件名称 类型 发布时间
AF16S Mushroom-head pushbuttons .PDF 12/30/2024 下载(647.23 KB)
