S19 vandal resistant E-stop switches Emergency Stop Switches
Φ19mm vandal resistant Emergency stop switches, compact design.
Features
● Very low back panel depth(21.2mm)
● Vandal resistant: Impact-resistant
● IK10, Front protection up to IP67
● Safety lock mechanism
● Direct opening action
● Optional M12 connection
● TUV CE RoHS

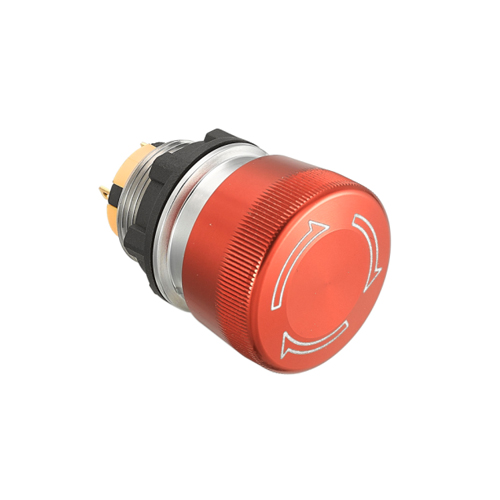

1

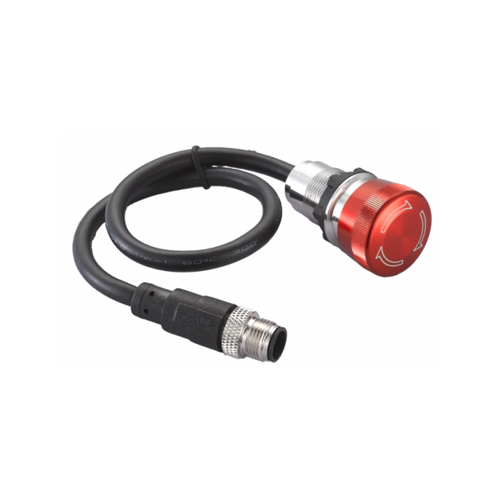

2
技术参数

Product type

Function

Emergency switches

Series

S19

Front

Style

Mushroom-head

From

Round

Mounting

Dimension

Φ19mm

Type

Panel mounting

Operating part

Color

Red

Material

Aluminum anodize

Switch Type

Switching action

Maintained

Release type
Twist to unlock

Contacts

1NO+1NC,2NC

Terminal

Soldering/Tab terminal #110

Other

Protection   degreen

IP65

Complete Device/Components

Complete evice

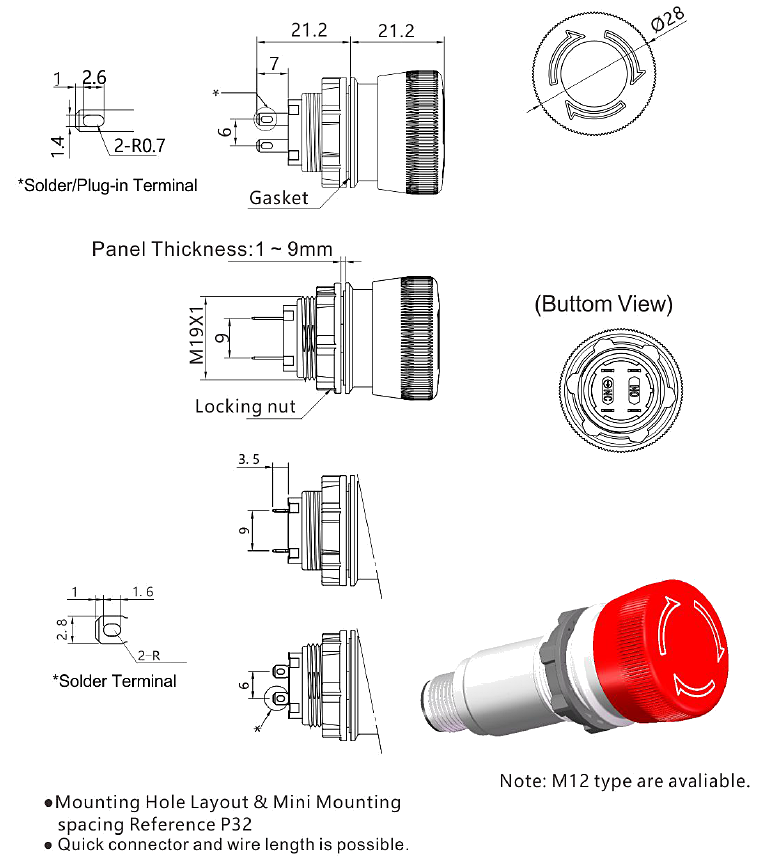

产品尺寸
S19 vandal resistant E-stop switches
资料文件
文件名称 类型 发布时间
S19 Emergency Stop Switches .PDF 01/04/2025 下载(649.87 KB)
