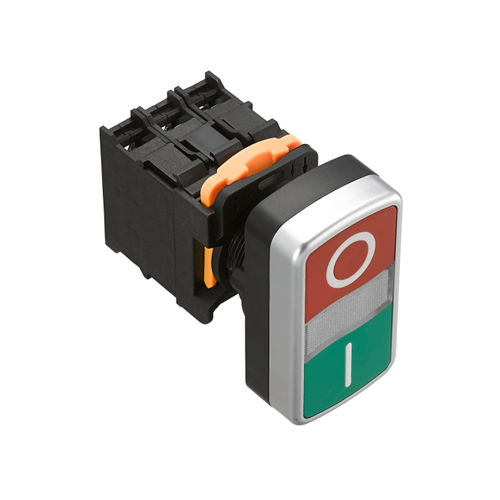

PB22 I/O push button switches I/O Push button Switches
PB series I/O push button switches are mechanical swithes that are pusher down to open or to close the electric contacts.
Features
● φ22mm
● Compact design
● ON/OFF function
● I red and O green
● Yellow or White LED
● Spring return
● IEC/EN60947-5-1,UL508,IEC73,IEC/EN60529
1
技术参数

Product type

Function

I/O pushbutton switches

Series

PB22

Front

Style

Rasied

From

Rectangular

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED part

Lens colors

yellowwhite

Illumination

Non-Illuminated\illuminated

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination     voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

screw terminal

Other

Protection degree

IP54

Complete     Device/Components

Complete Device

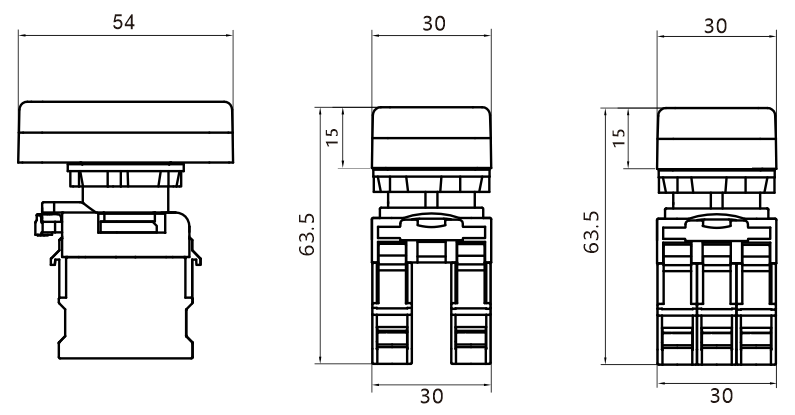

产品尺寸
PB22 I/O push button switches
资料文件
文件名称 类型 发布时间
Type PB IO Push button Switches .PDF 01/07/2025 下载(632.55 KB)
