● Ultra high brightness LED
● 46mm thick, slim product offers seamless integration with the equipments
● Optional built-in Buzzer
● IP65

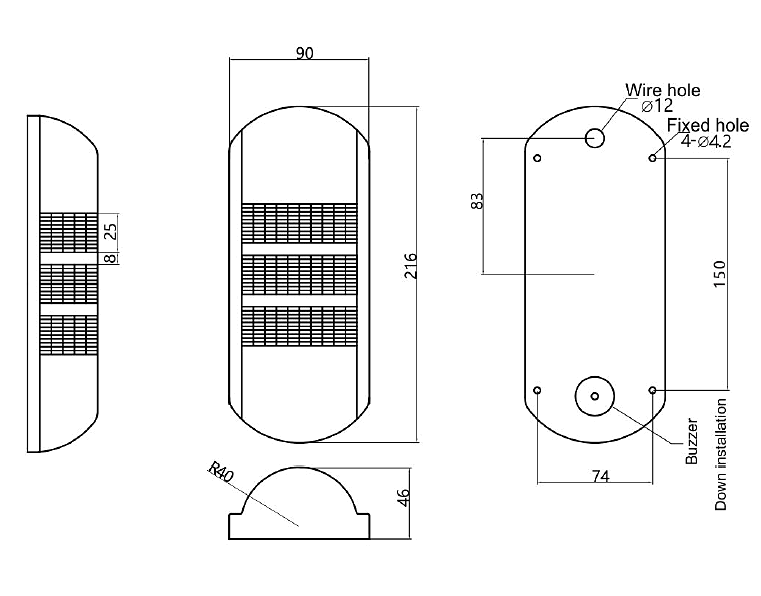

Outline Size | 90mm |
Input Voltage | 12VAC/DC;24VAC/DC;110V AC;220V AC |
Function | Brightness\ Buzzer |
Material | Lens-PC, Bodu-ABS |
LED Modular | Lens-PC, Bodu-ABS |
LED Modular Color | Red, Yellow, Green |
Work Temperature | -15℃~+40℃ (No Freezing) |
Store Temperature | -20℃~+70℃ (No Freezing) |
Humidity | 40~85%RH (No Condensation) |
Vibration resistance | 10~55Hz, Amplitude 0.75mm |
Installation category | Ⅲ |
Protection class | IP65 |
| 文件名称 | 类型 | 发布时间 | |
| HB9 90mm Wall Mounting Semicircular LED Signal Lights | 12/30/2024 | 下载(539.06 KB) |
