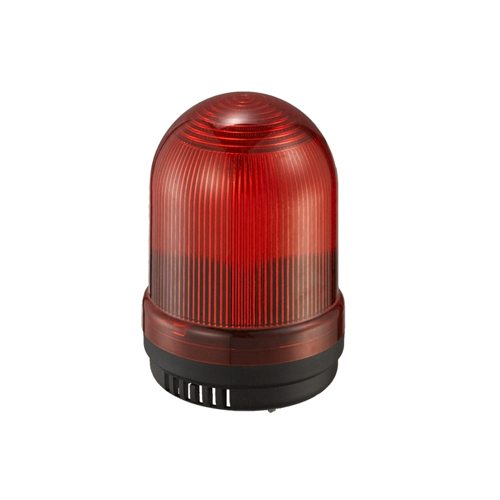

R90 warning lamp LED Signal Light
R90 warning lamp are dome design, effectively prevent surface dirt and dust deposition
Features
● Dome design, effectively prevent surface dirt and dust deposition
● Feaneous use of continuous, flashing, and audible alarm conditions
● Available in 12VDC,24VDC,48VDC and90-250VDC
● Vibration Resistance of 9G(90m/s2)
● Indoor/ outdoor Use-IP66
1

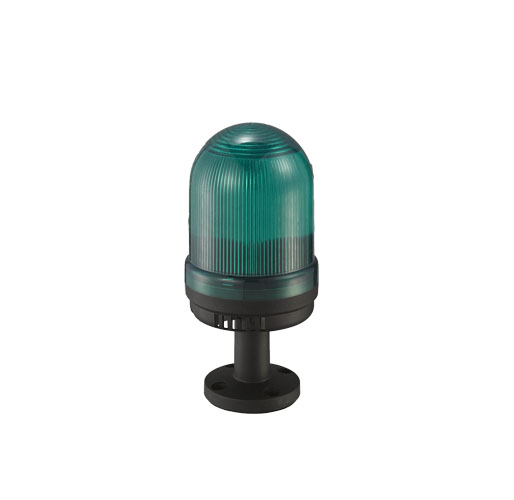

R9-G
技术参数

Rated Voltage

12VACDC\24VACDC\48VACDC,90~250VAC

Outline Size

φ90mm

Function

Brightness, rotating; flashing, Buzzer

Material

Lens-PC, Body-ABS

Lens color

Red, Yellow, Green, Blue, White

Work Temperature

-15℃~+40℃ (No Freezing)

Store Temperature

-20℃~+70℃(No Freezing)

Humidity

40~85%RH (No Condensation)

Vibration resistance

10~55Hz, Amplitude 0.75mm

Protection class

IP65

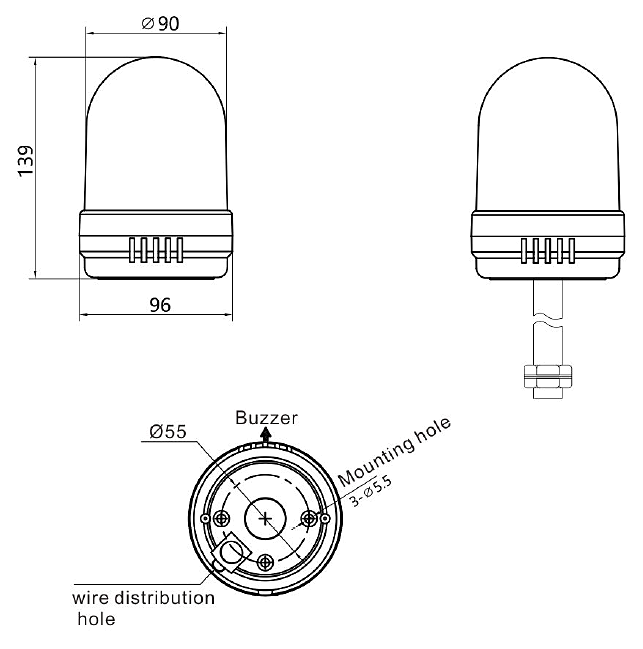

产品尺寸
R90 warning lamp
资料文件
文件名称 类型 发布时间
R90 φ90mm LED Signal Light .PDF 12/30/2024 下载(545.85 KB)
