AF16S Pilot lamp
LED illumination.LED lamp contains a built-in current limiting resistor and a protection diode.
Advantages
• A wide range of available LEDs, voltages and colours (including bi-colour version)
• Easy customised marking with text or symbols
• Large selection of text and symbol plates
• Operating temperatures of – 40 °C … + 55 °C
• IP65 front protection

Feature
● 3 operator shapes: round, square or rectangular
● 6 LED illumination colors available in 5V,12V,24VACDC, 48VACDC,110VACDC &220VACDC
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP67
Applications
Machinery
Automation
Medical
Control panel

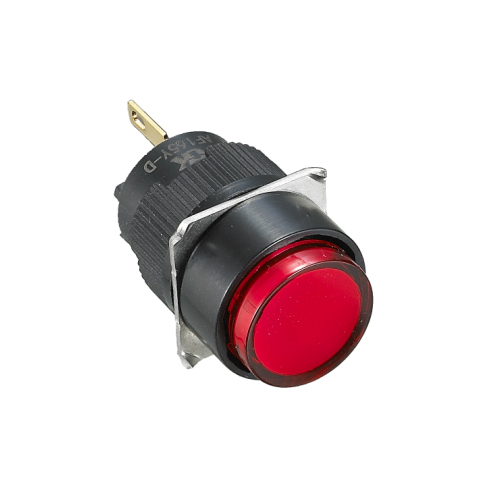

图1

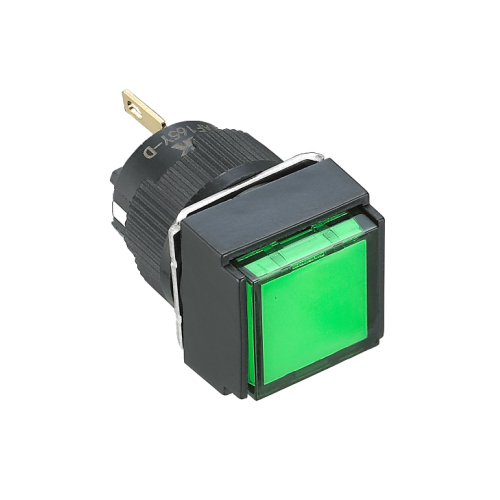

图2

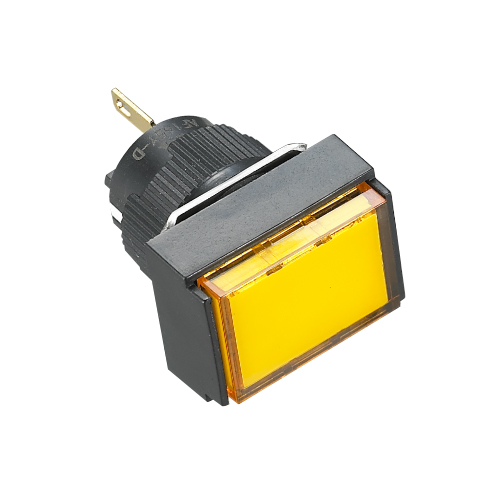

图3
技术参数


Product type

Function

Indicator lamp

Series

AF16S

Front

Style

Raised

From

Round/squre/rectangular

Mounting

Dimension

Φ16mm

Type

Panel mounting

LED part

Lens colors

Red\green\yellow\blue\white\Amber

Illumination voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Terminal

Terminal

Solder tab compatible with 110# quick disconnects

Other

Protection degree

IP67

Complete Device/Components

Complete Device

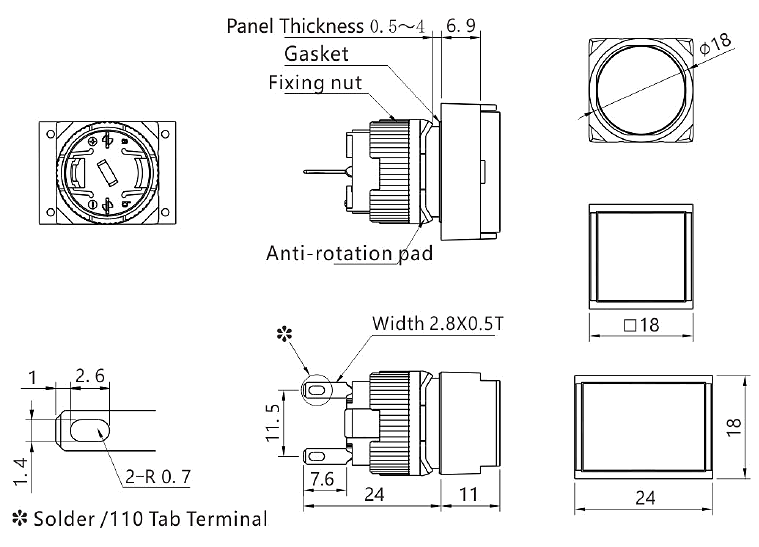

产品尺寸
AF16S
资料文件
文件名称 类型 发布时间
AF16S Indicators .PDF 12/30/2024 下载(637.11 KB)
