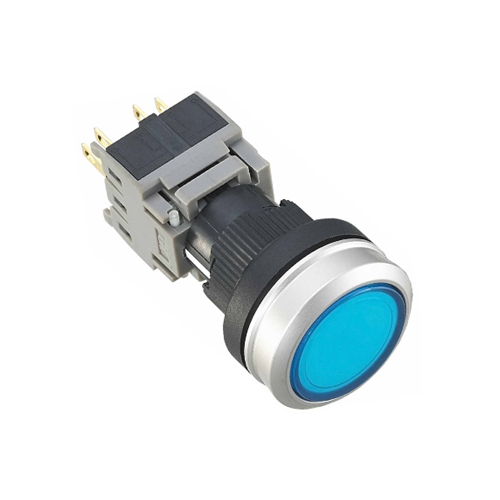

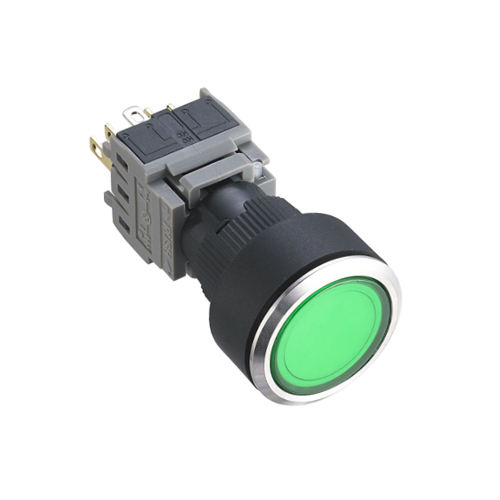

AF16L Series are available in flush or extended pushbuttons,also remove the obstacles form busy control panels where a flat surface is desirable to allow frequent finger travels.
Advantages
● Compact design, removable contact blocks ideal for single board mounting
●Separate contacts with a locking lever enable easy installation even when mounted collectively
●Large selection of lenses in different colors
● Bright and clear LED illuminated face
●Excellent tactile feedback
●Wide variety of symbols and markings, including customer-specific options
Features
● Removable contact blocks, with up to 3PDT contacts
● 2 operator shapes: flush type(AF16LF) and Extend type(AF16LE)
● 6 LED illumination colors available in 5V,12V,24VACDC, 48VACDC,110VACDC &220VACDC
● Solder tab compatible with 110# quick disconnects
● With guards to prevent false actuation
● Degree of protection: IP67
Applications
Medical
Automation
Machinery
Consumer Applications
Railroad
