● φ22mm
● Front bezel (Aluminium): circular
● Holder: Nut
● Self-hold or spring return
● Two and three positions
● IEC/EN60947-5-1,UL508,IEC/EN 60073,IEC/EN60529

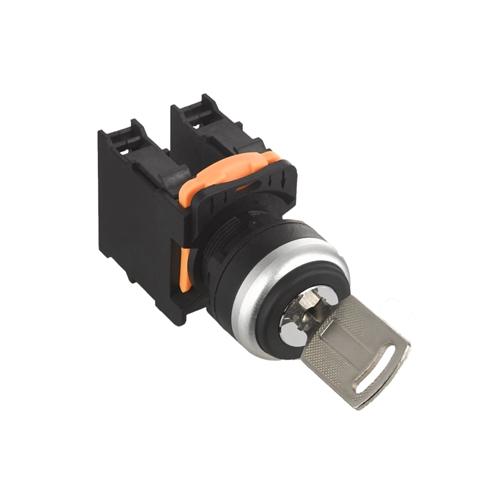

Product type | Function | Key selector switch |
Series | PB22 | |
Front | Style | Rasied |
From | Round | |
Mounting | Dimension | Φ22mm |
Type | Panel mounting | |
Operating /LED part | Lens colors | Red\green\yellow\blue\white\Amber |
Illumination shape | Ring | |
Illumination Colors | Red\Green\Yellow\Blue\White\Amber | |
Illumination voltage | 6VACDC\12VACDC\24VACDC\48VACDC 110VACDC\220VACDC | |
Switch Type | Switching action | Momentary/Maintained |
| Switching positions | 2 positions\3 positions | |
Contacts | 1NO+1NC,2NO+2NC,3NO+3NC | |
Terminal | screw terminal | |
Other | Protection degree | IP54 |
Complete Device/Components | Complete Device |
| 文件名称 | 类型 | 发布时间 | |
| Type PB Key Selector Switches | 01/07/2025 | 下载(661.04 KB) |
