C7K Illuiminated E-stop swithes llluiminated Emergency -Stop Switches
C7K illuiminated Emergency-Stop switches are combining the function of Φ70mm lighting and Emergency stop switches,take physical force to press and actuate the button.
Features
● Combining the Feature of C7 indicator andS19Emergency stop switches, Physical force to operate
● Up to three independent colors in one unit
● Independent input/ output models
● Rugged, Fully encopsulated construction IP69K, Suitable for the high-pressure wash jet enviro- nment
● Immune to EMI and RFI interference
● Cabled and Quick disconnect models available

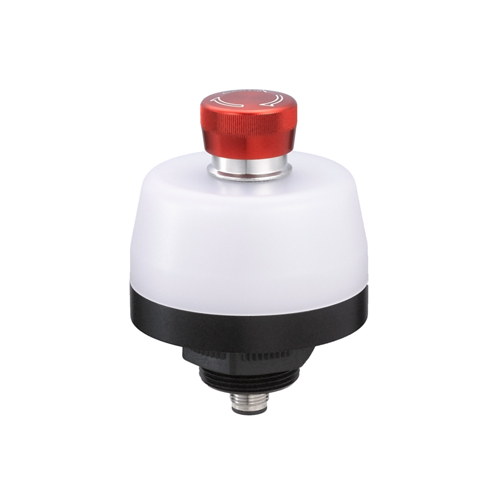

1

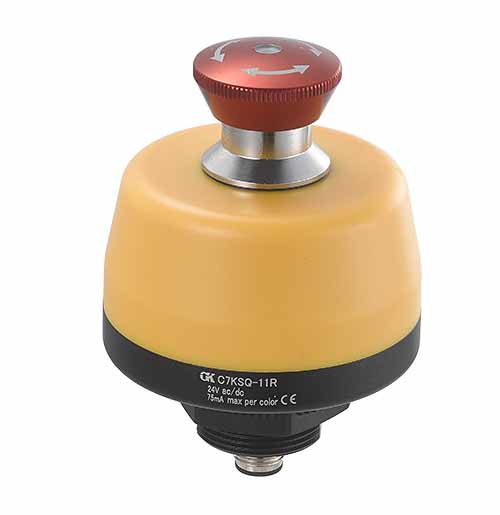

C7KSQ-11R
技术参数

Rated voltage

24VDC

Supply Current

<35mA Max.

Supply/output protection Circuitry

Protected against reverse polarity voltages

output Rating

Max. load:150mA,
ON-state saturation
voltage:<2V dc at 10mA Off-state leakage current<

construction

Hosing: Aluminum(Anodizing black)
Push button: stainless steel
Translucent dome:PC; Mounting nut:PA

Connections

M12 quick connection or Cable 1.5M

Mounting

M30×1.5 Threaded base, Max torque  2.25 N·m

Operating Conditions

-25℃~+55℃; Humidity:85% RH(no  condensation)

Storage Temperature

-40℃+70℃ no freezing

Vibration and Mechanical Shock

All models meet IEC60947-5-2;

Environmental Rating

IEC IP67,IP69K per DIN 40050-9

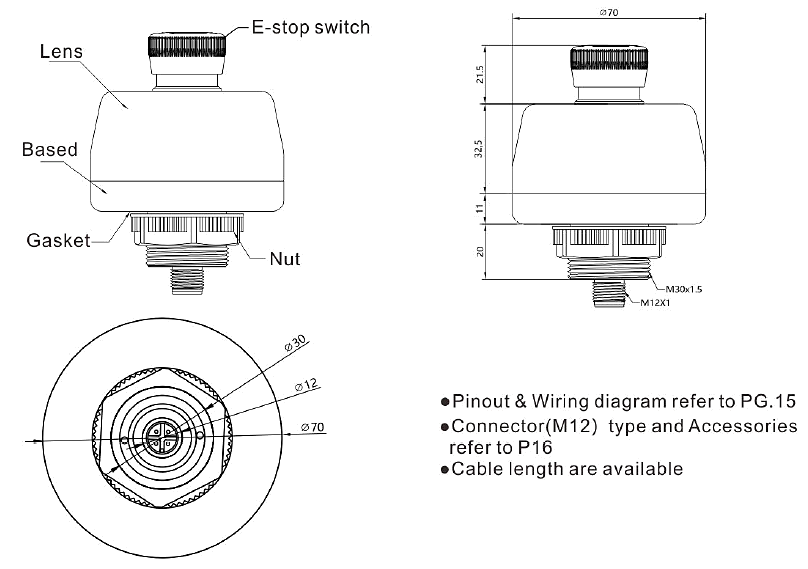

产品尺寸
C7K Illuiminated E-stop swithes
资料文件
文件名称 类型 发布时间
C7K llluiminated E-Stops .PDF 12/30/2024 下载(1.2 MB)
