AF16L Larger operator Key selector switches
AF16L key selector switches ,Key switches have proven themselves to prevent erroneous or unauthorised operation. they are also be sued to implement access authorisation for user groups
Features
● 2-position and 3-position key switches. Maintained and spring return available
● Removable contact blocks, with up to 3PDT contacts
● 2 operator shapes: flush type(AF16LF) and Extend type(AF16LE)
● Wave key , three different keys available
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP67
Applications
Machinery
Automation
Medical
Control panel

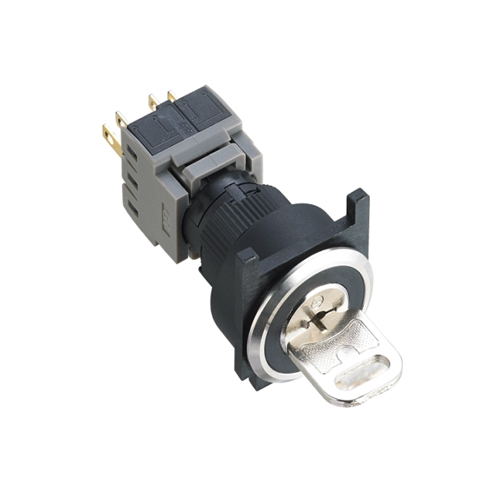

图1

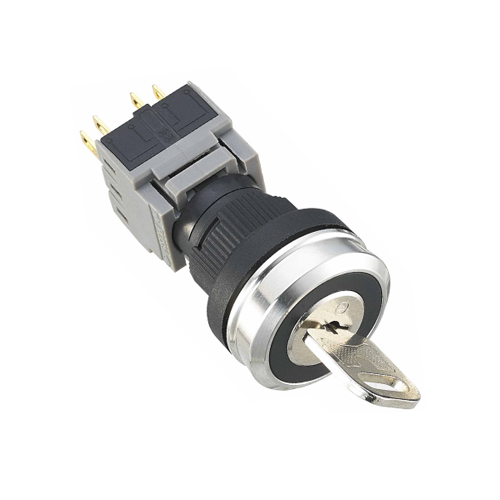

图2
技术参数

Product type

Function

Key Selector switches

Series

AF16L

Front

Style

Larger Operating

From

Flush/Rasied

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating part

Operating parts colors

black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Switching positions

2 positions/3positions

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

Solder tab compatible with 110# quick disconnects

Other

Protection degreen

IP40,IP65,IP67

Complete   Device/Components

Complete Device

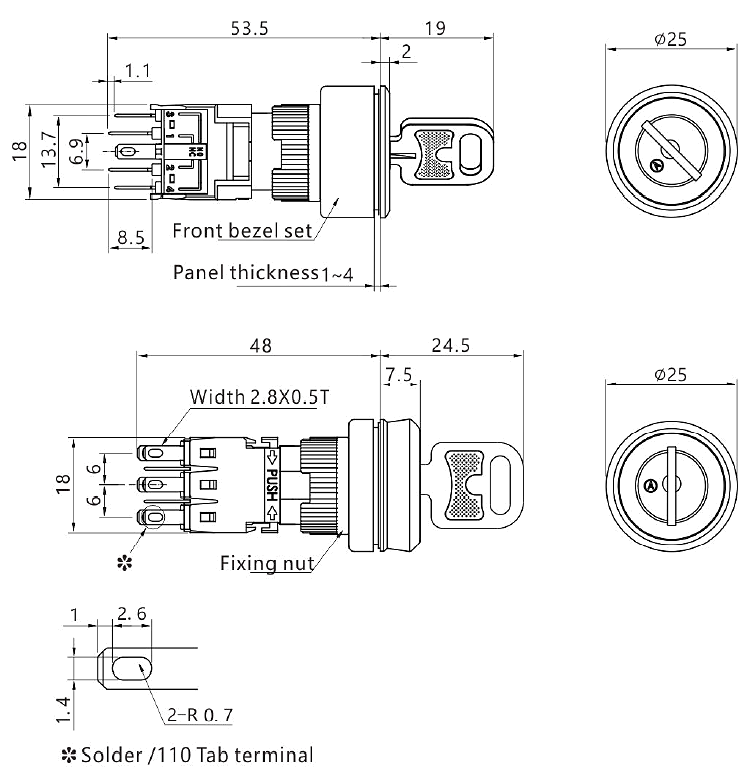

产品尺寸
AF16L Larger operator
资料文件
文件名称 类型 发布时间
AF16L Keylock switches .PDF 12/30/2024 下载(660.08 KB)
