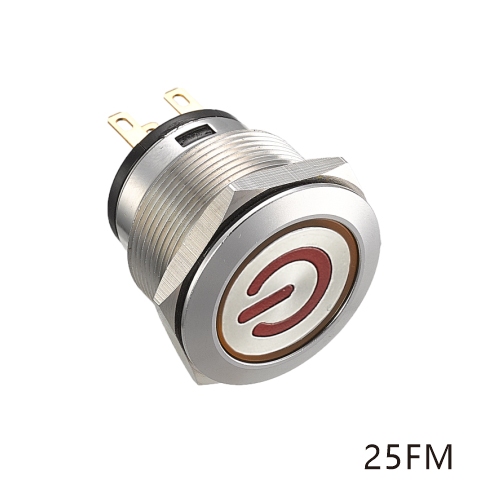

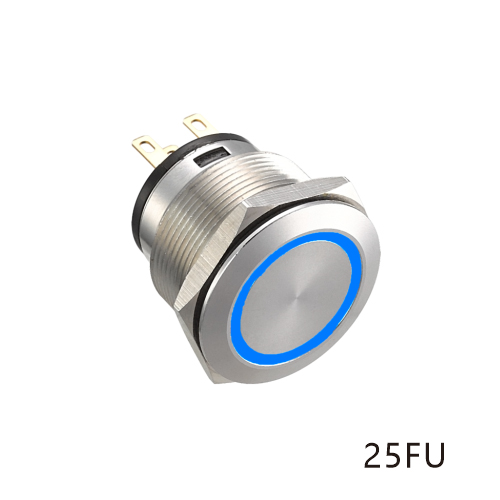

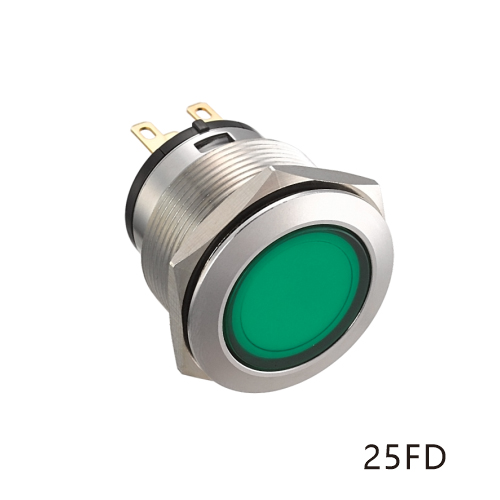

S25 Vandal resistant Illuminated pushbuttons llluminated pushbuttons

Φ25mm vandal resistant Illuminated Pushbuttons, compact design, Combine rugged and style.

Features

● Illuminated pushbuttons
● SUS316L stainless steel are available
● High resistance to vibration and impact
● Quickly connector and PCB connector are available
● Laser Markings are available for any symbol or text in any language
● High IP67/69K protection
● Oiltight model are available
● Single or bi-color LEDs available
● TUV CE RoHS

技术参数

Product type	Function	Vandal resistant Illuminated Pushbuttons
Product type	Series	S25
Front	Style	Flush
Front	From	Round
Mounting	Dimension	Φ25mm
Mounting	Type	Panel mounting
Operating/indicator part	Lens colors	Red,Green,Yellow,Blue,white,Amber,Black
	Illumination colors	Red,Green,Yellow,Blue,white,Amber
	Illumination voltage	6VACDC\12VACDC\24VACDC \110VACDC\220VACDC
Switch Type	Switching action	Momentary/Maintained
	Contacts	1NO+1NC,2NO,2NC
	Terminal	Soldering/Tab terminal #110, PC board, screw terminal, M12 quick connector
Other	Protection degreen	IP67
Other	Complete Device/Components	Complete evice

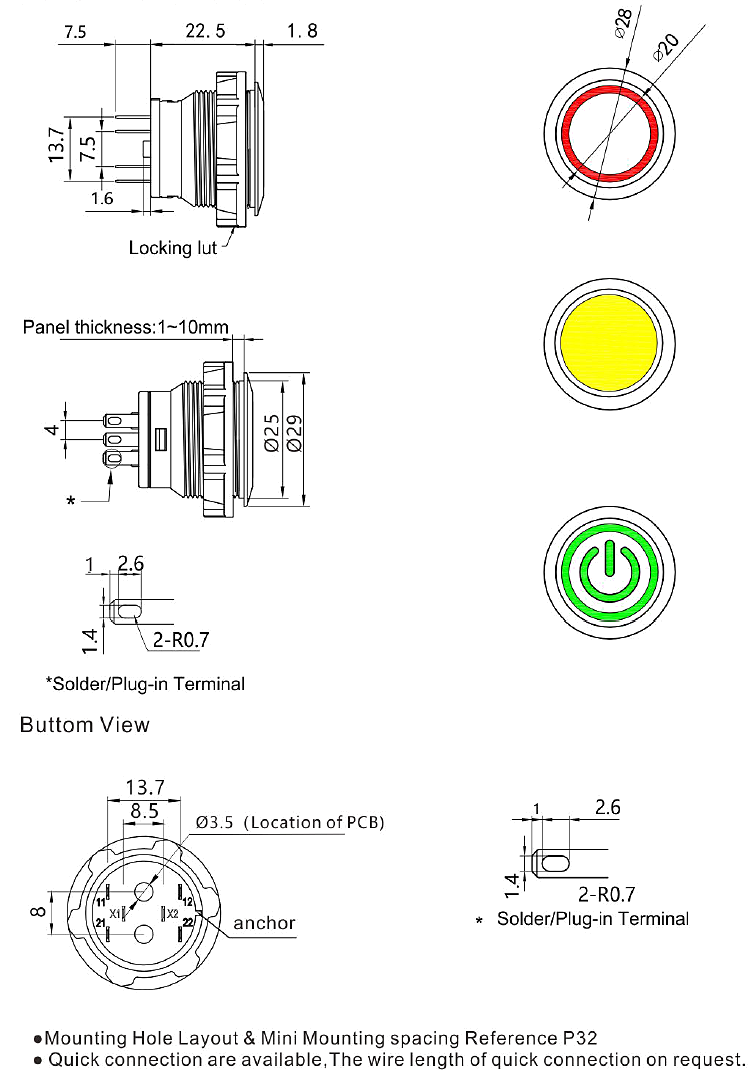

产品尺寸

S25 Vandal resistant Illuminated pushbuttons

资料文件

文件名称	类型	发布时间
S25 llluminated pushbuttons	.PDF	01/04/2025	下载(617.02 KB)
