● φ22mm
● Front bezel (Aluminium): standard, circular
● Holder : Metal, Plastic, Nut
● Push to lock, turn clockwise to reset

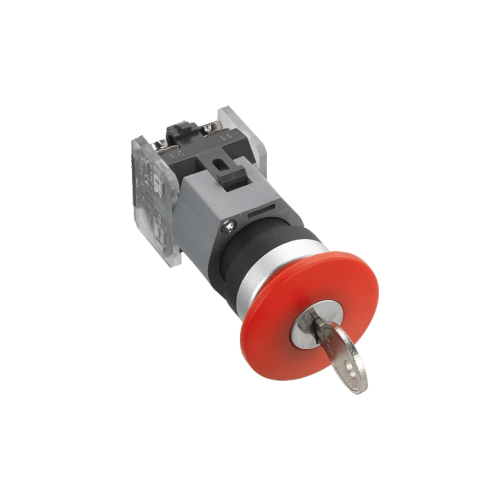

● Push to lock, unlock by turning the key

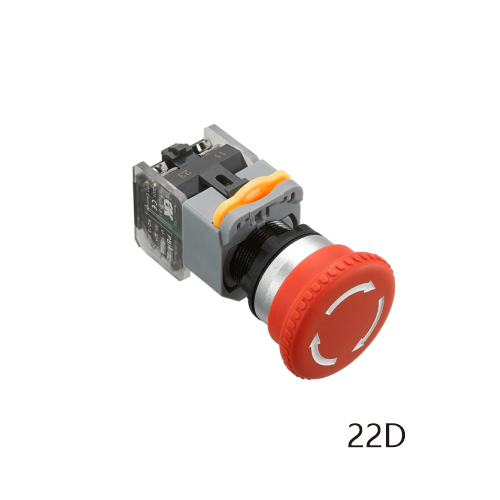

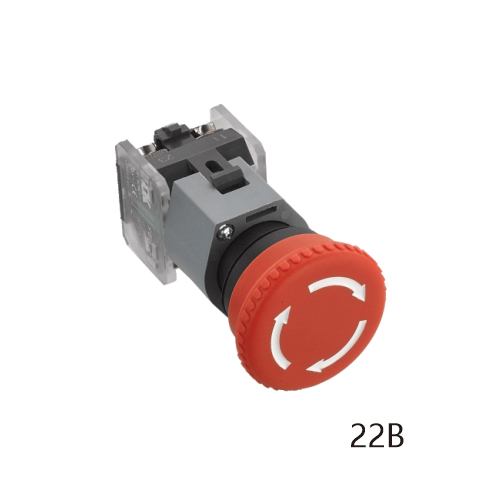

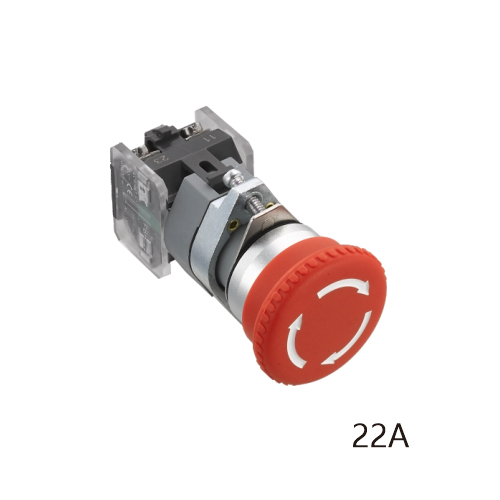

● φ40mm Mushroom shape
● IEC/EN60947-5-1,UL 508,IEC/EN 60073,IEC/EN60529
Product type | Function | Emergency swithes/key-rest Emergency stop switches |
Series | PBH-22 | |
Front | Style | Rasied |
From | Round | |

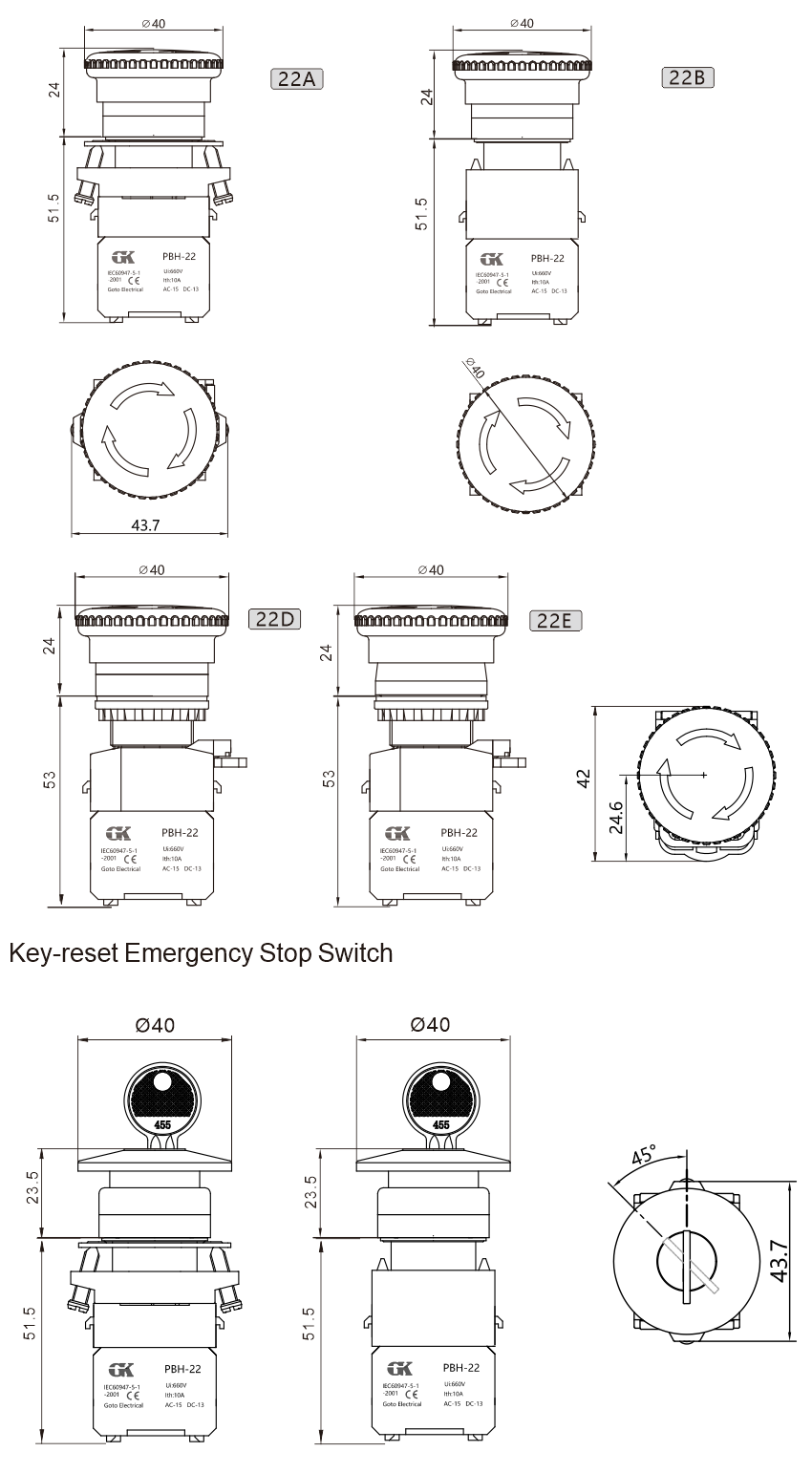

Mounting | Dimension | Φ22mm |
Type | Panel mounting | |
Operating /LED part | Lens colors | Red |
Illumination shape | Mushroom-head | |
Switch Type | Switching action | Maintained |
| Release type | Push to lock, turn to reset, Push to lock, unlock by turning the key | |
Contacts | 1NO+1NC,2NO+2NC,3NO+3NC | |
Terminal | screw terminal | |
Other | Protection degree | IP54 |
Complete Device/Components | Complete Device |
| 文件名称 | 类型 | 发布时间 | |
| Type PBH Emergency Stop switchKey-rest Emergency Stop Switch | 01/07/2025 | 下载(597.56 KB) |
