AF16S Key switches
AF16S key selector switches have proven themselves to prevent erroneous or unauthorised operation. they are also be sued to implement access authorisation for user groups
Features
● 2-position and 3-position key switches. Maintained and spring return available
● Removable contact blocks, with up to 3PDT contacts
● 3 operator shapes: round, square or rectangular
● Wave key , three different keys available
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40; IP65
Applications
Machinery
Automation
Medical
Control panel

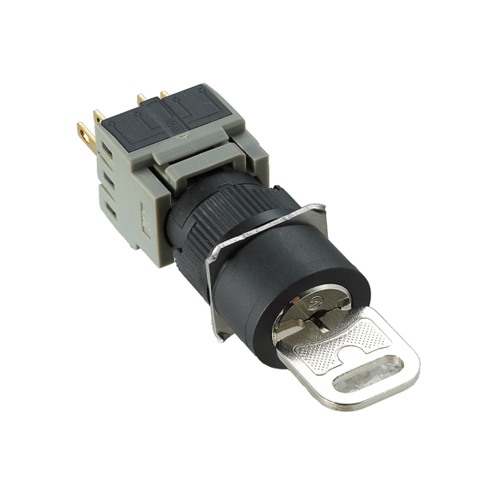

图1

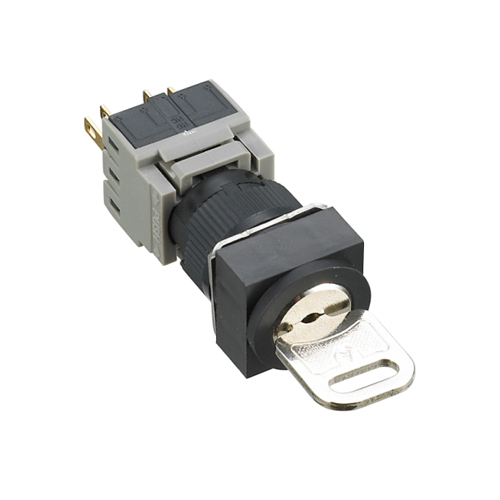

图2

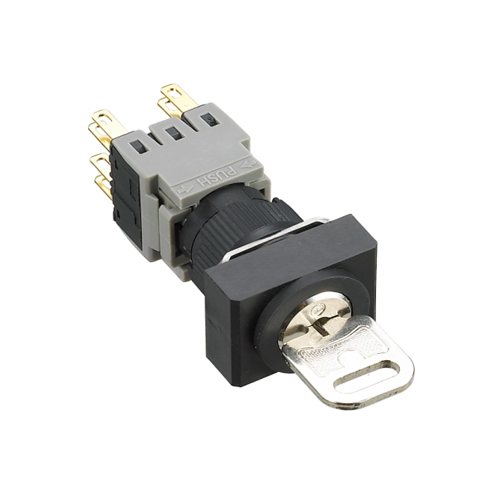

图3
技术参数

Product type

Function

Non-Illuminated Pushbuttons

Series

AF16S

Front

Style

Raised

From

Round/squre/rectangular

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating part

Operating part

black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Sweitching positions2 positions\3 positions
Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

Solder tab compatible with 110# quick disconnects

Other

Protection degreen

IP40,IP65,IP67

Complete Device/Components

Complete Device

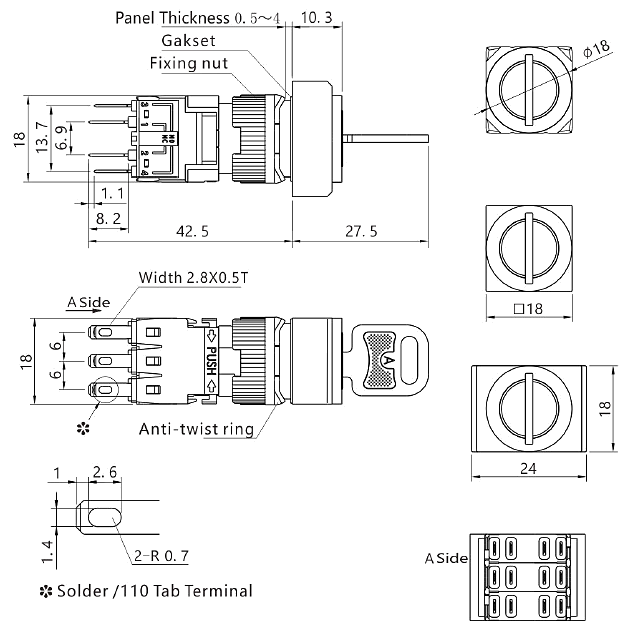

产品尺寸
AF16S
资料文件
文件名称 类型 发布时间
AF16S Keylock switches .PDF 12/30/2024 下载(727.9 KB)
