PBH-30 Flush key selector switches Flush Key Selector Switches
Features
● φ30mm
● Front bezel (Aluminium): standard, circular
● Holder : Metal, Plastic, Nut
● Self-hold or spring return
● Two and three positions
● IEC/EN 60947-5-1,UL 508,IEC/EN 60073,IEC/EN60529

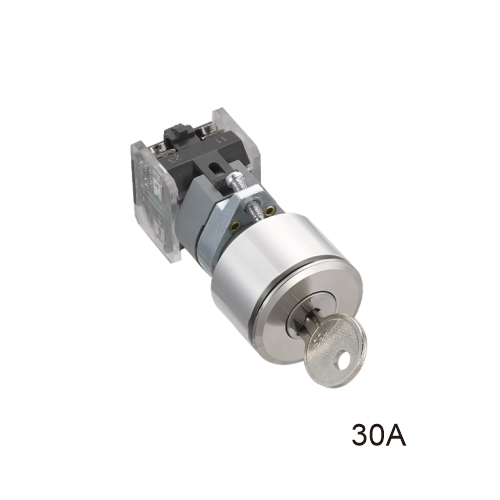

1

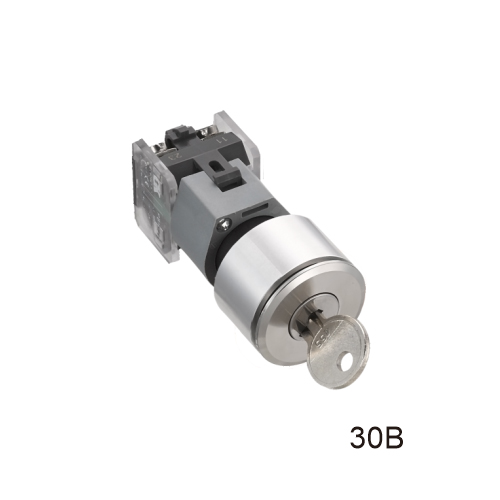

2

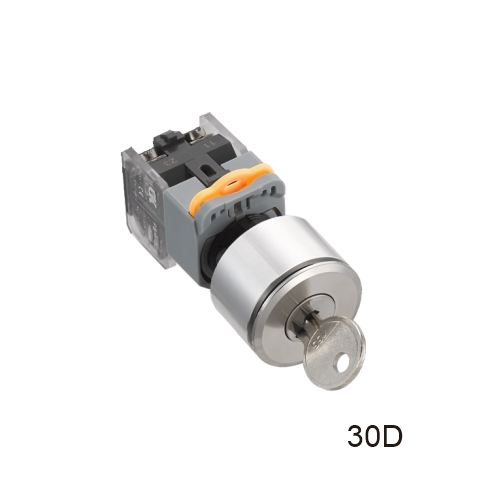

3
技术参数

Product type

Function

Key selector switches

Series

PBH-30

Front

Style

Flush

From

Round

Bezel colorsNature
Bezel materialSUS304

Mounting

Dimension

Φ30mm

Type

Panel mounting

Switch Type

Switching action

Momentary/Maintained

Switching Positions2 positions\3 positions

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

screw terminal

Other

Protection degree

IP54

Complete     Device/Components

Complete Device

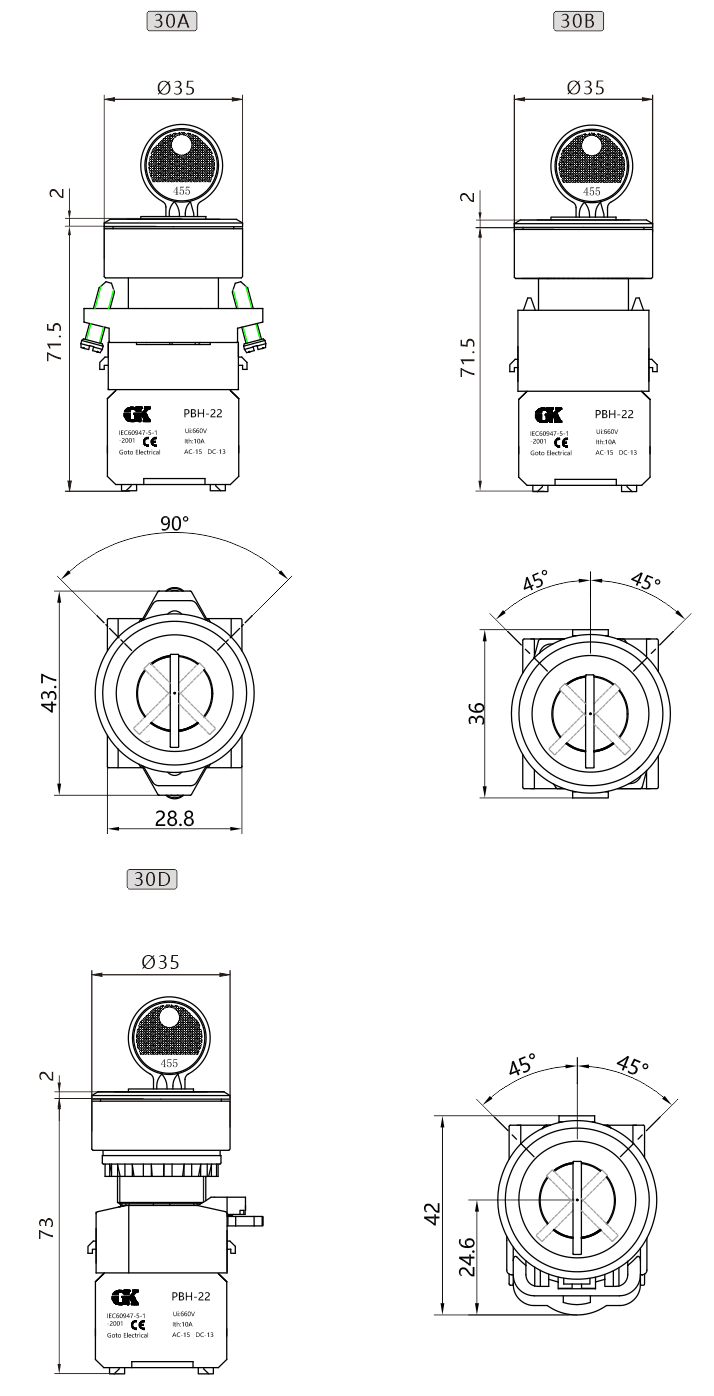

产品尺寸
PBH-30 Flush key selector switches
资料文件
文件名称 类型 发布时间
Type PBH Flush Key Selector Switches .PDF 01/07/2025 下载(542.26 KB)
