AF16B flush type Key selectors switches
AF16B Series flush type key switch, Key selector switches with keys that are difficult to duplicate. Three different key numbers to choose from, with up to 3PDT contacts.
Features
● 2-position and 3-position key switches. Maintained and spring return available
● Removable contact blocks, with up to 3PDT contacts
● 3 operator shapes: round, square or rectangular
● Wave key, three different keys available
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40; IP65;IP67
Application
Panel building
Machinery

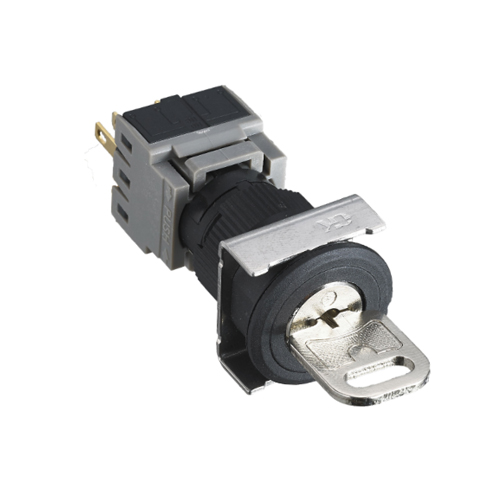

图1

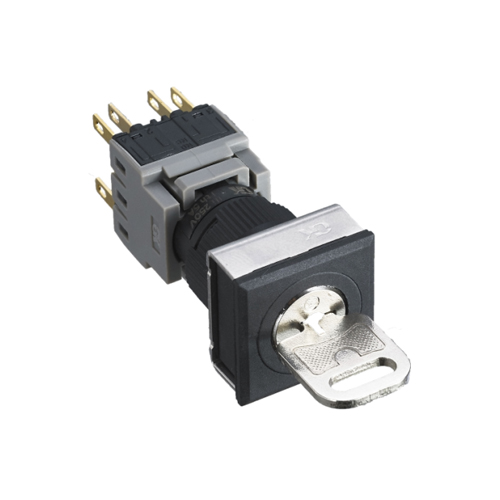

图2

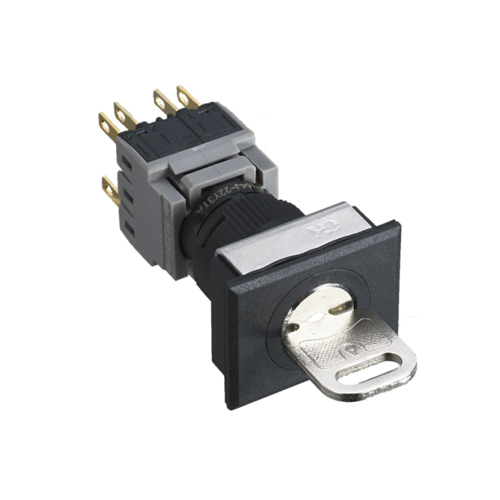

图3
技术参数

Product type

Function

Selector switches

Series

AF16B

Front

Style

Flush

Form

Round/squre/rectangular

Mounting

Dimension

Φ19mm /19mmX19mm /19mmX24mm

Type

Panel mounting

Operating part

Lever color

black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Switching position2 positions\3 positions

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

Solder tab compatible with 110# quick disconnects

Other

Protection degreen

IP67

Complete Device/Components

Complete Device

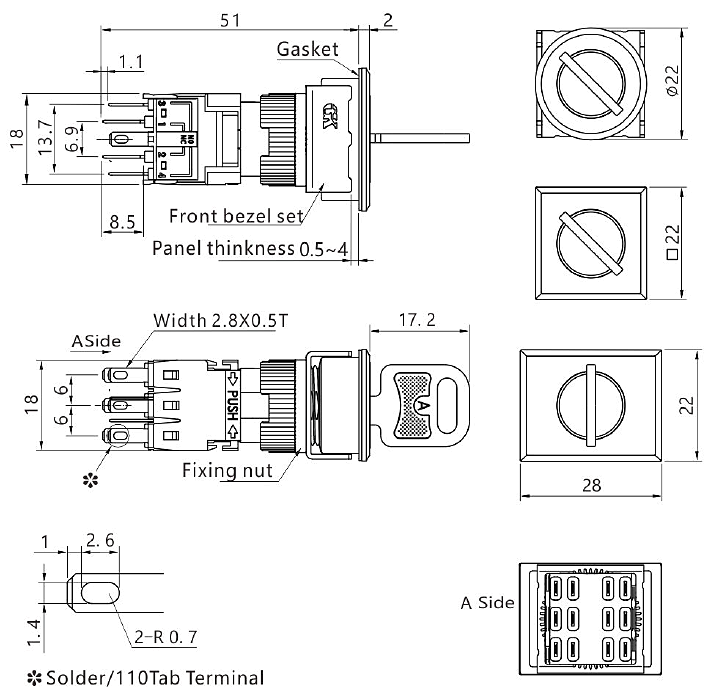

产品尺寸
AF16B flush type
资料文件
文件名称 类型 发布时间
AF16B Keylock switches .PDF 12/30/2024 下载(732.5 KB)
