Type PL22 indicators Indicator
PL22 series pilot lights use high-intensity LEDs. PL is avaiable in seven different front bezel, compact versions.
Features
● ∅22mm
● Compact versions
● Different colour chiose
● High brightens s pure colour LED
● High reliability and durability
● AC and Dc voltage
● Anti-interference surge, prevent false light
pl1
2
3
4
5
6
7
技术参数

Product type

Function

Indicators

Series

PL22

Front

Style

Raised

From

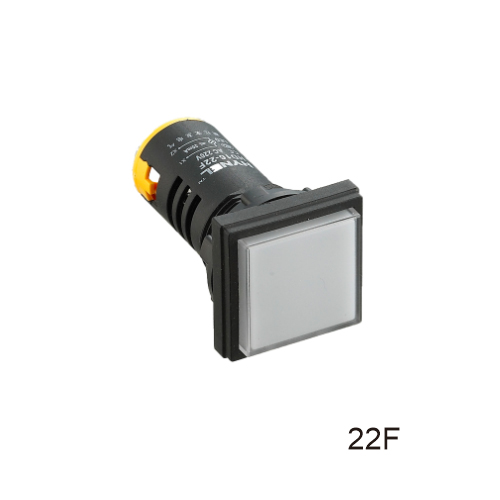

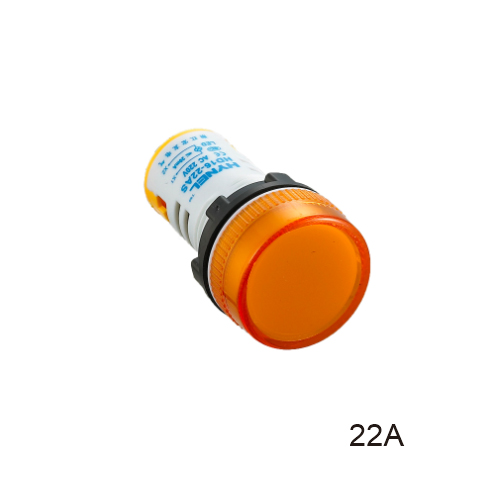

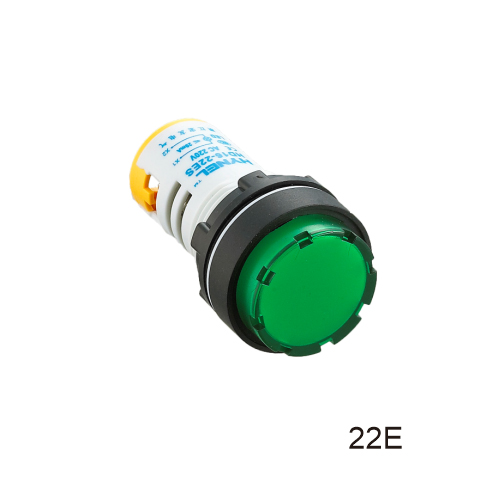

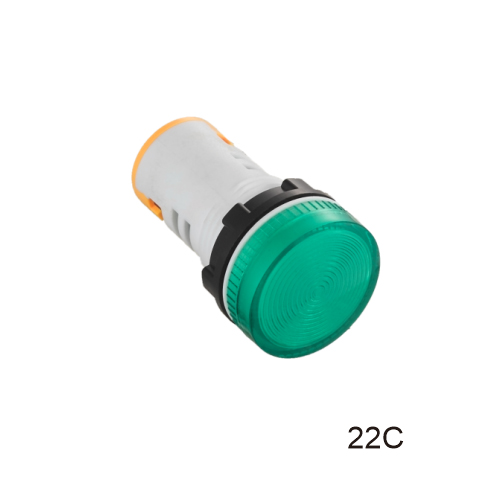

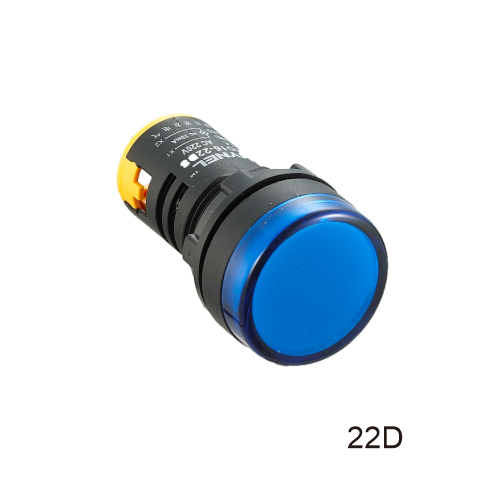

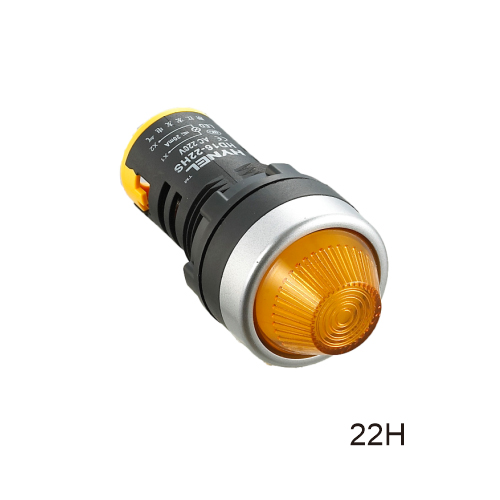

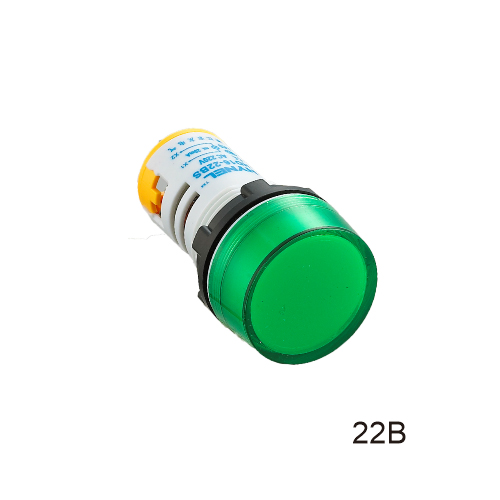

A=High Lens1; B=High Lens; C=Low Lens curve; D=Low Lens flat;E= Teeth Lens; F= Squar Lens; H=Cone Lens

Mounting

Dimension

Φ22mm

Type

Panel mounting

LENS/LED part

LENS colors

Red\Green\Yellow\Blue\White\Amber

LENS typeA=High Lens1; B=High Lens; C=Low Lens curve; D=Low Lens flat;E= Teeth Lens; F= Squar Lens; H=Cone Lens

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination   voltage

6VACDC\12VACDC\24VACDC\48VACDC 110VACDC\220VACDC \380VAC

Other

Terminal

Soldering terminal

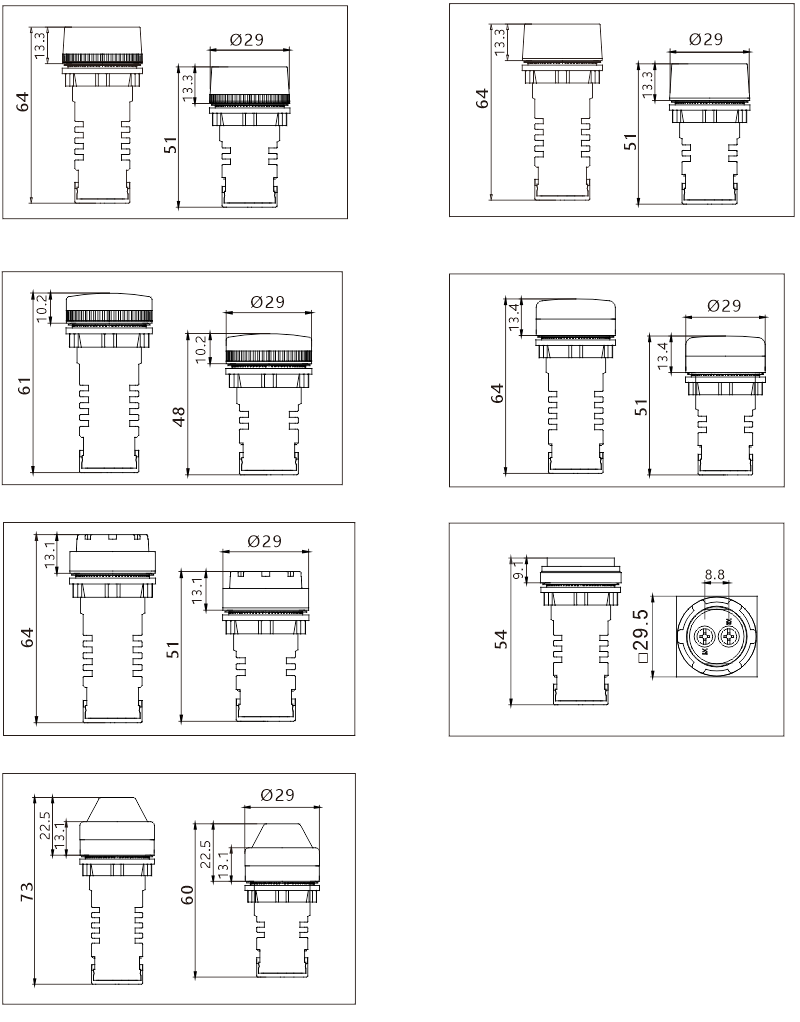

产品尺寸
Type PL22 indicators
资料文件
文件名称 类型 发布时间
Type PL22 Pilot Lights .PDF 01/07/2025 下载(615.84 KB)
