AF16B Pilot lamp
AF16B pilot lamp , Flush Bezel projects only 2mm from front of panel( Flush design) pilot lamp
Advantages
Flush design
Bright and homogenous illumination
Wide range of standard symbols
Customised symbols on request
Feature
● 3 operator shapes: round, square or rectangular
● 6 LED illumination colors available in 5V,12V,24VACDC, 48VACDC,110VACDC &220VACDC
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP67
Applications
Automation
Machinery
Consumer Applications

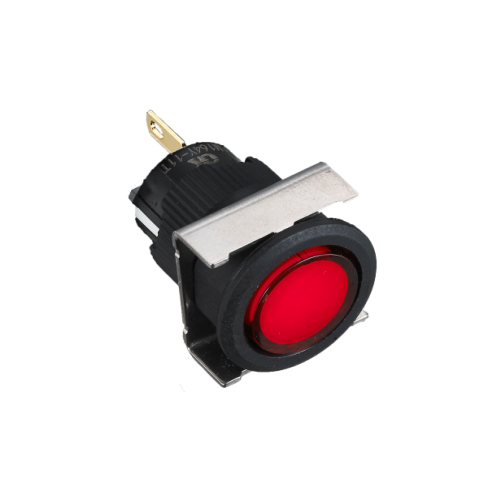

图1

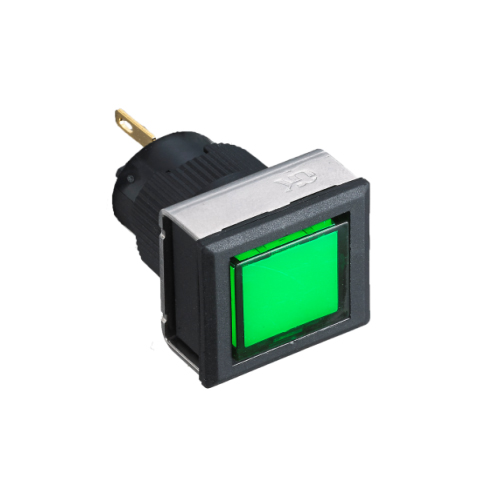

图2

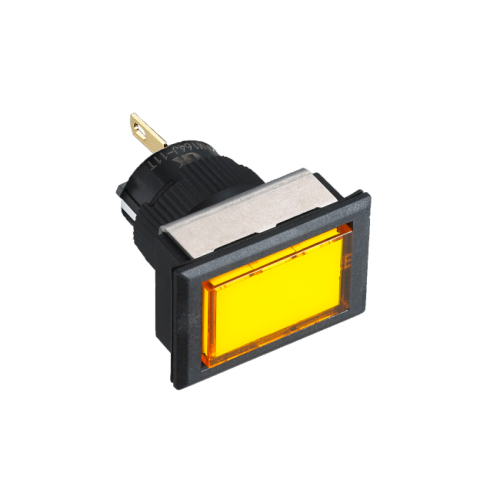

图3
技术参数

Product type

Function

Indicator lamp

Series

AF16B

Front

Style

Flush

Form

Round/Squre/Rectangular

Mounting

Dimension

Φ19mm

Type

Panel mounting

LED part

Lens colors

Red\green\yellow\blue\white\Amber

Illumination voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Terminal

Terminal

Solder tab compatible with 110# quick disconnects

Other

Protection degree

IP67

Complete Device/Components

Complete Device

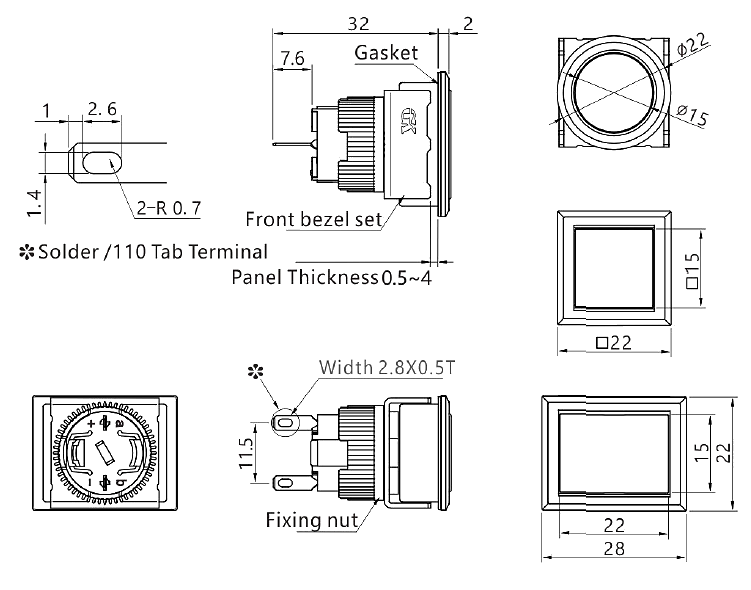

产品尺寸
AF16B
资料文件
文件名称 类型 发布时间
AF16 catalogue2023 .PDF 07/05/2025 下载(18.01 MB)
