Type PL22 Bi-Colour Pilot lamp & Flashing lamp
PL22 series bi-color lamp & flashing lamp, applications include industrial control panels of all type, equipment indicactor panels,status indicators and display lighting.
Features
● ∅22mm
● Two color lamp/ flashing
● lamp Different colour chiose
● High brightens s pure colour LED
● High reliability and durability
● AC and Dc voltage

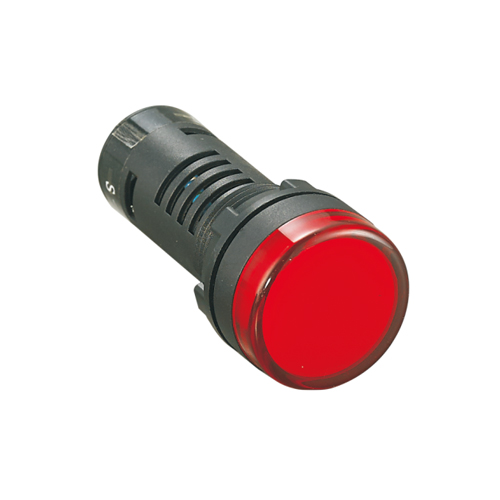

1

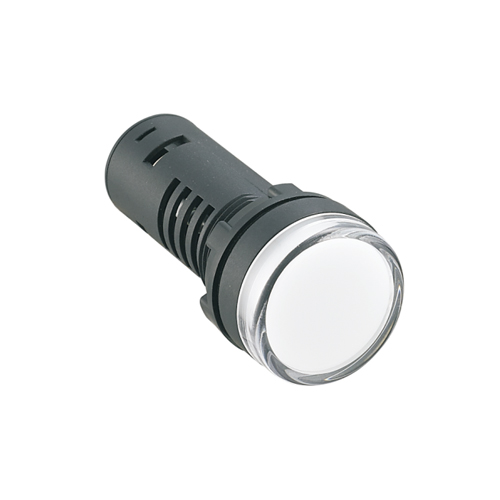

2
技术参数

Product type

Function

Indicators

Series

PL22

Front

Style

Raised

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED   part

LENS colors

Red\Green\Yellow\Blue\white\Amber

Illumination Colors

Red

Illumination   voltage

6VACDC\12VACDC\24VACDC\48VACDC\110VACDC\220VACDC

Other

Terminal

Soldering terminal

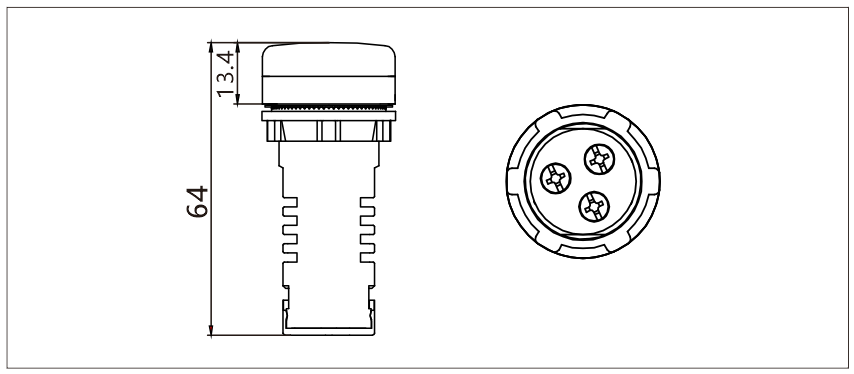

产品尺寸
Type PL22
资料文件
文件名称 类型 发布时间
Type PL22 Bi-Colour Pilot lamp & Flashing lamp .PDF 01/07/2025 下载(658.53 KB)
