C5K Illuminated pushbutton llluiminated push button& pick-to-light
C5KIlluminated push button, are consist of Φ 50mm lighting with Metal pushbuttons.take physical force to press and actuate the button.
Features
● Combining the Feature of C5 indicator and S22 push-button, Physical force to operate
● Up to three independent colors in one unit
● Independent input/ output models.
● Rugged, Fully encopsulated construction IP69K, Suitable for the high-pressure wash jet enviro- nment
● Immune to EMI and RFI interference
● Cabled and Quick disconnect models available

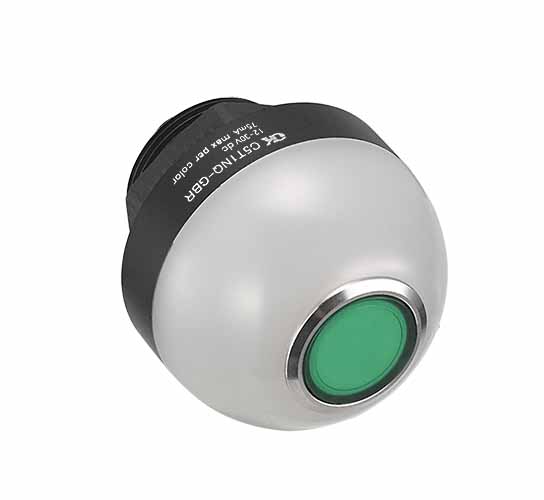

C5K-D1NQ-G

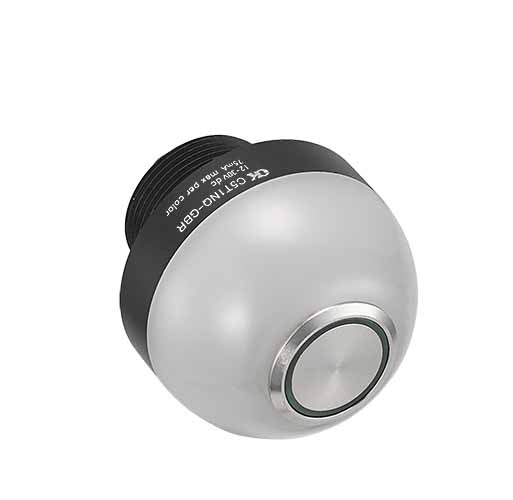

C5K-U1NQ-G
技术参数

Rated voltage

24VDC

Supply Current

<35mA Max.

Supply/ output protection Circuitry

Protected against reverse polarity voltages

output Rating

Max. load:150mA,
ON-state  saturation voltage:<2V dc at 10mA Off-state leakage current<

Output response Time

150 milliseconds  on and off

Power-up Delay

300 milliseconds

construction

Hosing: Aluminum(Anodizing black)
Translucent dome:PC
Mounting nut:PA

Connections

M12 quick  connection or Cable 1.5M

Mounting

M22×1 Threaded  base, Max torque 2 N·m

Operating Conditions

-25℃~+55℃;   Humidity:85% RH(no condensation)

Storage Temperature

-40℃~+70℃ (no  freezing)

Vibration and Mechanical Shock

All models meet IEC60947-5-2;

Environmental Rating

IEC IP67,IP69K per DIN 40050-9

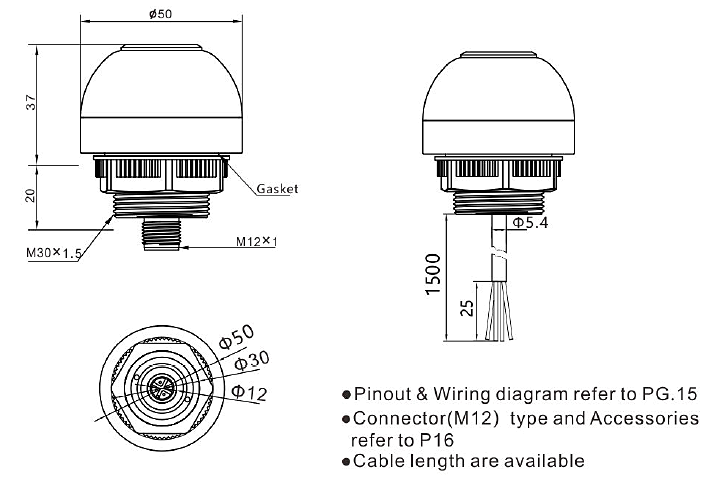

产品尺寸
C5K Illuminated pushbutton
资料文件
文件名称 类型 发布时间
C5K llluiminated push button& pick-to-light .PDF 12/30/2024 下载(674.88 KB)
