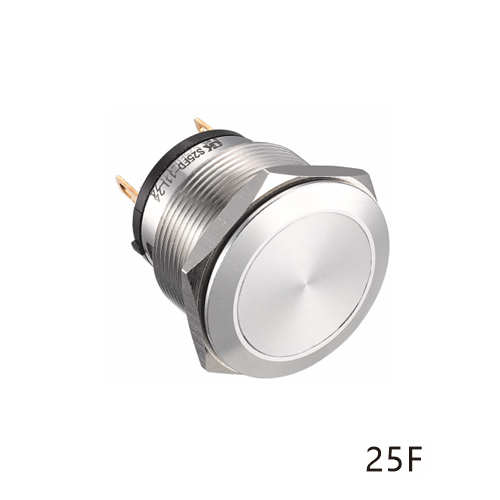

S25 Vandal resistant Pushbuttons Pushbuttons
Φ25mm vandal resistant pushbuttons, compact design, Combine rugged and style.
Features
● φ25mm
● Housing made of SUS304 stainless steel
● High resistance to vibration and impact Quickly connector and PCB connector are available
● Laser Markings are available for any symbol or text
● High IP67/69K protection
● Oiltight model are available
● Tüv CE RoHS
1
技术参数

Product type

Function

Vandal resistant Pushbuttons

Series

S25

Front

Style

Flush,Rasied,Flush\wide-brimmed

From

Round

Mounting

Dimension

Φ25mm

Type

Panel mounting

Operating part

Lens colors

SUS 316

Illumination

Non-Illuminated

Switch Type

Switching action

Momerntary\Maintained

Contacts

1NO+1NC,2NO,2NC

Terminal

Soldering/Tab terminal #110, PC board, screw terminal, M12 quick   connector

Other

Protection     degreen

IP67

Complete   Device/Components

Complete evice

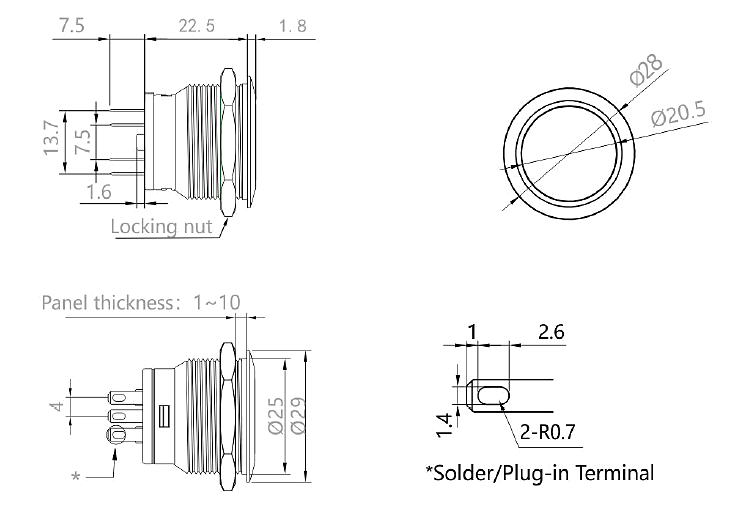

产品尺寸
S25 Vandal resistant Pushbuttons
资料文件
文件名称 类型 发布时间
S25 Pushbuttons .PDF 01/04/2025 下载(601.19 KB)
