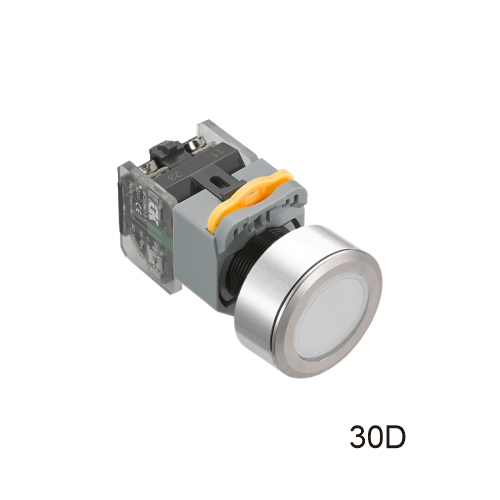

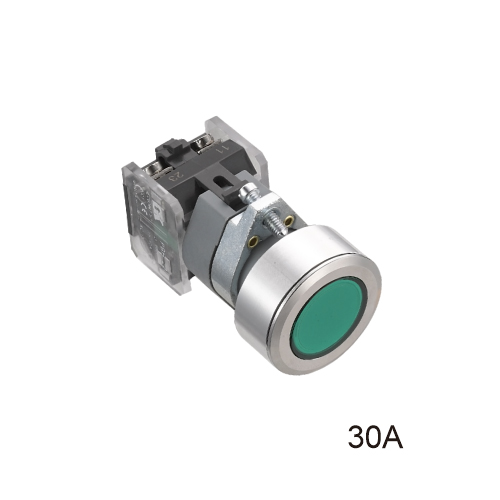

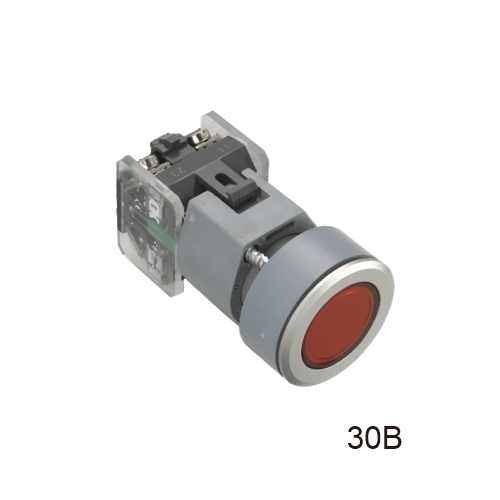

PBH-30 Flush pushbuttons Flush Pushbuttons/llluminated Flush Pushbuttons

Features

● φ30mm
● Front bezel (SUS 304):FLush round
● Holder : Metal, Plastic, Nut
● Momentary & Maintained
● Wide range of lenses and lens colours
● Bright , single or bi-color LED illumination
● IEC/EN60947-5-1,UL508,IEC/EN 60073,IEC/EN60529

技术参数

Product type	Function	Illuminated Pushbuttons
Product type	Series	PBH-30
Front	Style	Flush
Front	From	Round
Mounting	Dimension	Φ30mm
Mounting	Type	Panel mounting
Operating /LED part	Lens colors	Red\green\yellow\blue\white\Amber\black
	Illumination shape	Lens
	Illumination Colors	Red\Green\Yellow\Blue\White\Amber
	Illumination voltage	6VACDC\12VACDC\24VACDC\48VACDC 110VACDC\220VACDC
Switch Type	Switching action	Momentary/Maintained
	Contacts	1NO+1NC,2NO+2NC,3NO+3NC
	Terminal	screw terminal
Other	Protection degree	IP65
Other	Complete Device/Components	Complete Device

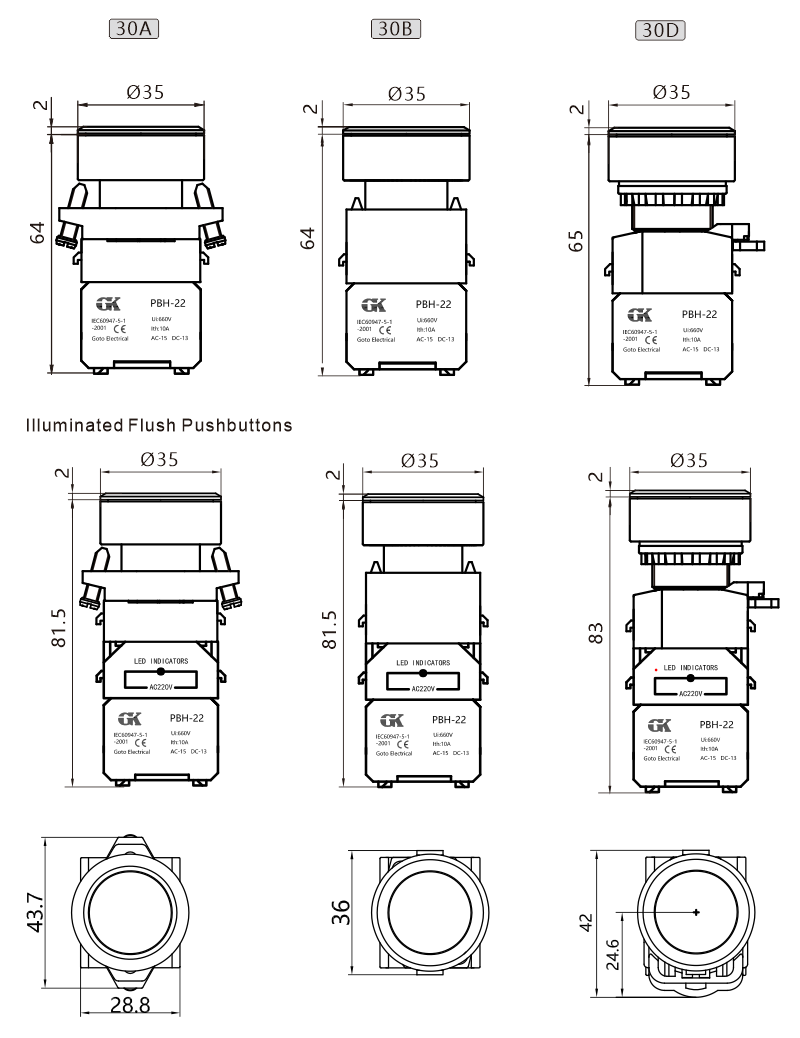

产品尺寸

资料文件

文件名称	类型	发布时间
Type PBH Flush Pushbuttonsllluminated Flush Pushbuttons	.PDF	01/07/2025	下载(628.41 KB)
