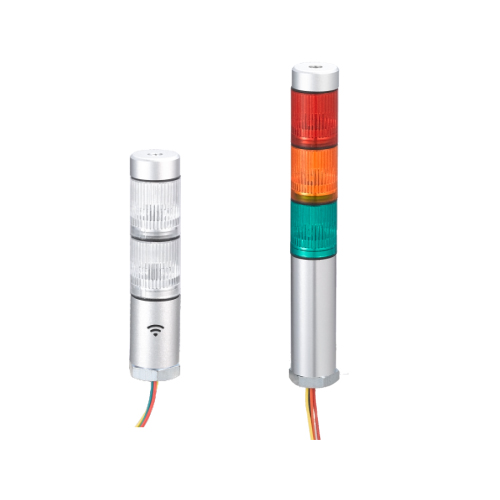

TLM2S Signal tower light Signal Tower Light
Φ30mm Signal light Tower are modular construction,high quality LED source.
Features
● Ideal for status indication on small size pieces of equipment.
● Corrosion resistant aluminum body and impact, heat resistant Polycarbonate lenses
● Built-to-Buzzer, Optional 75dB
● Available in Aluminum black anodized
● Available in transparent Lens
● IP65 water and dust resistance
● NPN/PNP open-collector
1
技术参数

Outline Size

φ25mm

Input Voltage

12VAC/DC;24VAC/DC

Function Available

Bright\ Buzzer

Material

Lens-PC, Cover-PC/ABS, Body/    locknut-Aluminum,

LED Modular tiers

5 tiers

LED Modular Color

Red, Green, Yellow, Blue, White

Work Temperature

-15℃~+4 0℃ (No    freezing)

Store Temperature

-20℃~+70℃ (No    freezing)

Humidity

40~85%RH (No    condensation)

Vibration resistance

10~55Hz, Amplitude    0.75mm

Installation category

Direct Mount:M30 nut or 3-point hole    mounting

Pole mount:L-bracket; circular bracket;    folding bracket

Protection class

IP54

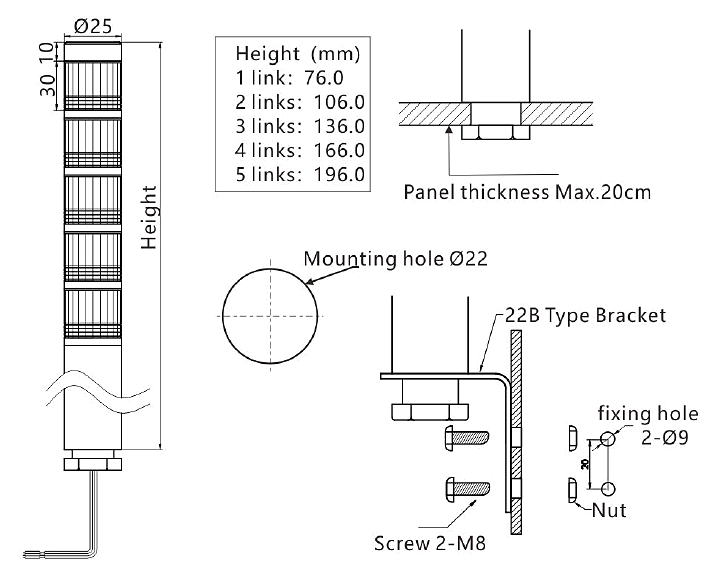

产品尺寸
TLM2S Signal tower light
资料文件
文件名称 类型 发布时间
TLM2S φ25mm Signal Tower Light .PDF 12/30/2024 下载(635.92 KB)
