S22 llluminated Key Selector Switches
Features
● Ring-illuminated
● SUS316L stainless steel are available High resistance to vibration and impact2-position or 3 position options
● High IP67/69K protection
● Oiltight model are available
● Single or bi-color LEDs available
● Quickly connector and PCB connector are available
● Tüv CE RoHS

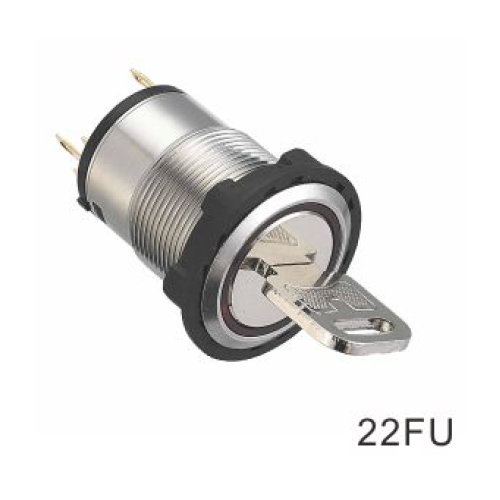

图1

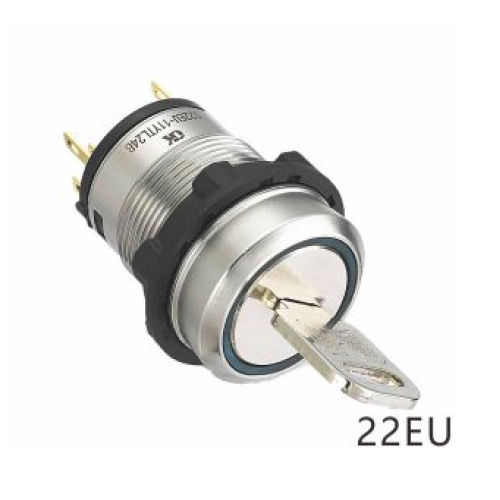

图2

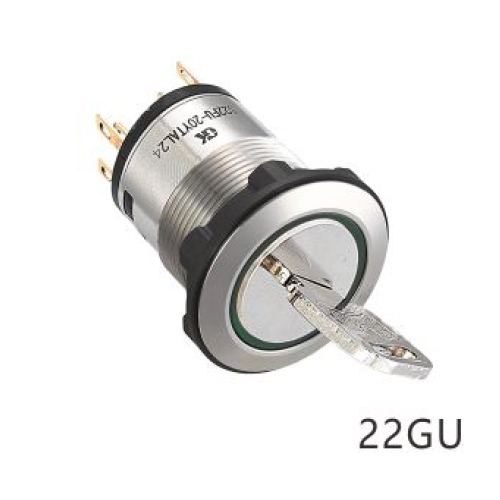

图3
技术参数

Product type

Function

Vandal resistant Key switches

Series

S22

Front

Style

Flush,Rasied,Flush\wide-brimmed

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating/indicator    part

Lens colors(ring)

Red,Green,Yellow,Blue,white,Amber,Black

Illumination colors

Red,Green,Yellow,Blue,white,Amber

Illumination   voltage

6VACDC\12VACDC\24VACDC   \110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Switching positions

2positions/3positions

Contacts

1NO+1NC,2NO,2NC

Terminal

Soldering/Tab terminal #110, PC board, screw terminal, M12 quick   connector

Other

Protection     degreen

IP67

Complete   Device/Components

Complete evice

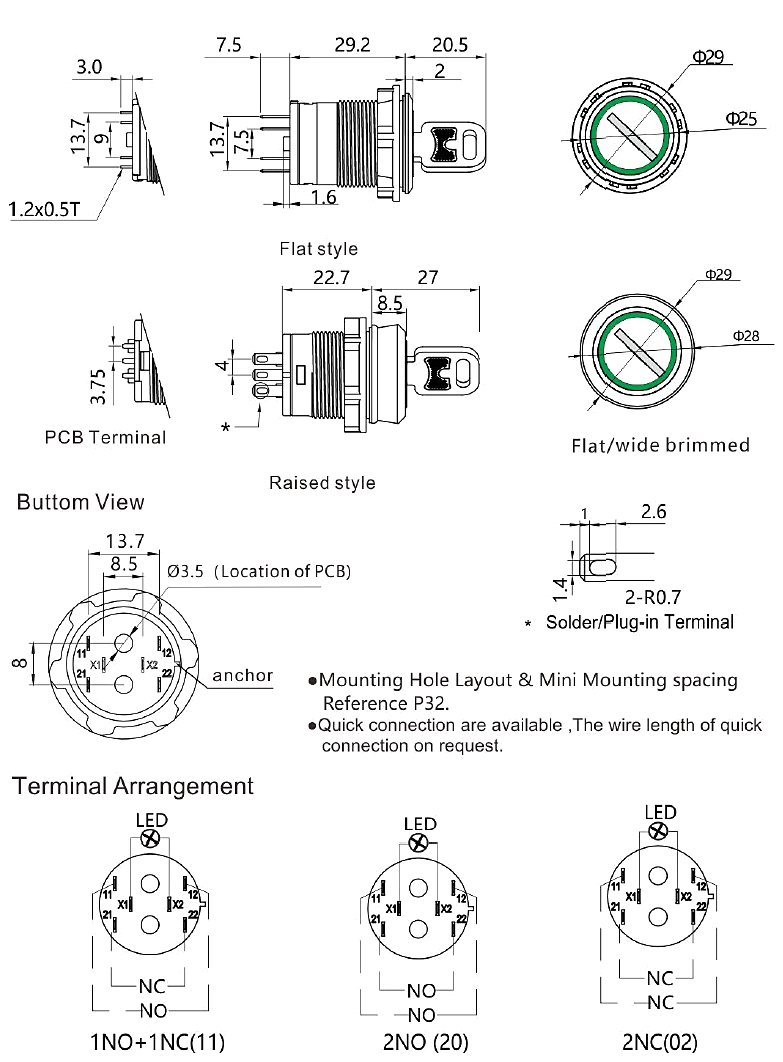

产品尺寸
S22
资料文件
文件名称 类型 发布时间
S22 llluminated Key Selector Switches .PDF 01/04/2025 下载(746.45 KB)
