AF16B flush type Illuminated Pushbuttons
AF16B flush type, flush bezel projects only 2mm from front of panel, they are ideal for single board mounting. Eliminate convex and concave face. Flush type is most suitable of frequent operation for panel.
Advantages
● Flush design, removable contact blocks ideal for single board mounting
●Separate contacts with a locking lever enable easy installation even when mounted collectively.
● Bright and clear LED illuminated face
●Excellent tactile feedback
●Wide variety of symbols and markings, including customer-specific options
Feature
● Flush design, Removable contact blocks, with up to 3PDT contacts
● 6 LED illumination colors available in 5V,12V,24VACDC, 48VACDC,110VACDC &220VACDC
● 3 operator shapes: round, square or rectangular with black or metallic color bezels
● Solder tab compatible with 110# quick disconnects
● With guards to prevent false actuation
● Degree of protection: IP40; IP65;IP67
Applications
Panel building
Machinery

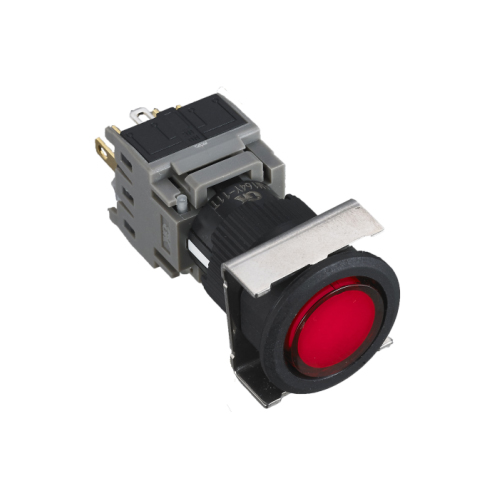

图1

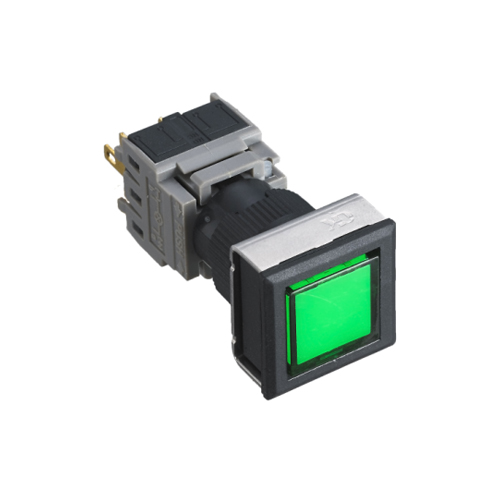

图2

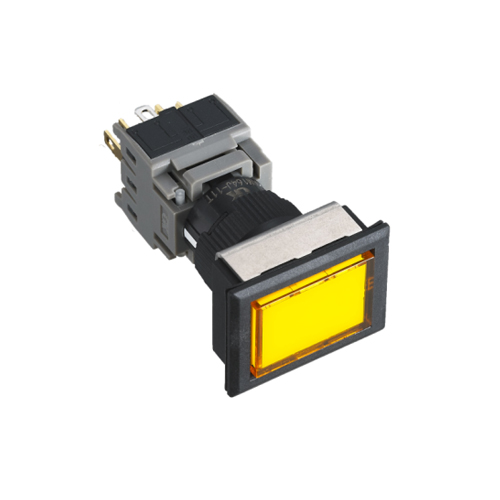

图3
技术参数

Product type

Function

Illuminated Pushbuttons

Series

AF16B

Front

Style

Flush

From

Round/squre/rectangular

Mounting

Dimension

Φ19mm /19mmX19mm /19mmX24mm

Type

Panel mounting

Operating /LED part

Lens colors

Red\green\yellow\blue\white\Amber

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

Soldering terminal

Other

Protection degree

IP67

Complete Device/Components

Complete Device


产品尺寸

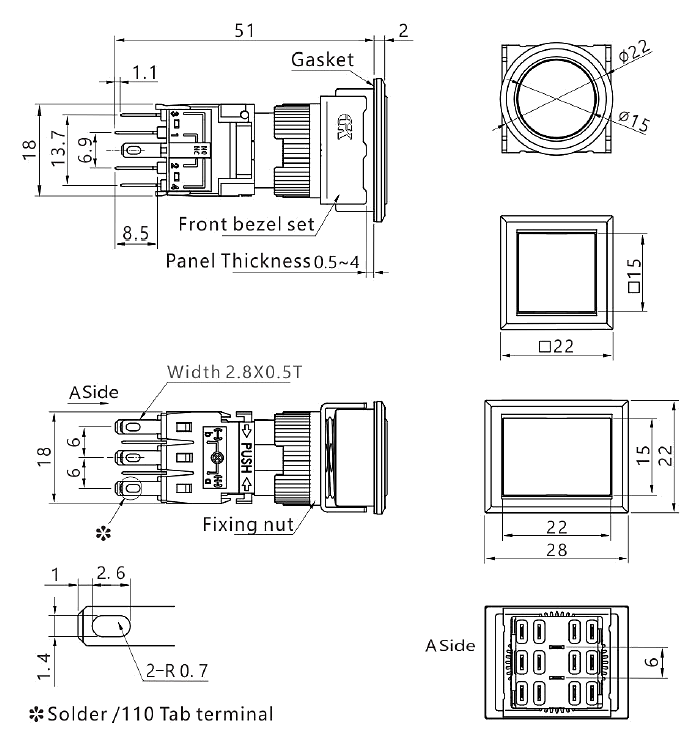

AF16B flush type
