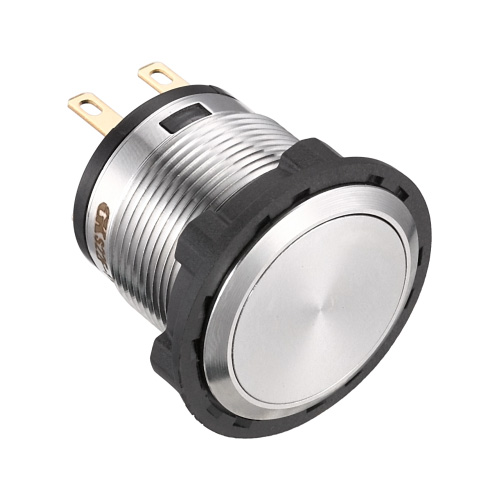

S22 Vandal proof Pushbuttons
S22 series metal switch button adopts a larger operating surface to prevent accidental operation, with a protection level of IP67
Advantages
• Compact design,more convenient to use
• Large selection of front in different forms
• Silver/gold-plated silver contacts available for low voltages and currents
• Laser Markings are available for any symbol or text
• Excellent tactile feedback
• Long service life
Features
• Φ22mm
• Housing made of sus304 stainless steel
• Front protection up to IP67
• oiltight model are available
• Laser Markings are available for any symbol or text
• Excellent tactile feedback
• Long service life (up to 1 million switching cycles)
Applications
Metal work machinery
Industrial cleaning equipment
security equipment
Medical equipment
Semiconductor
Power and energy control

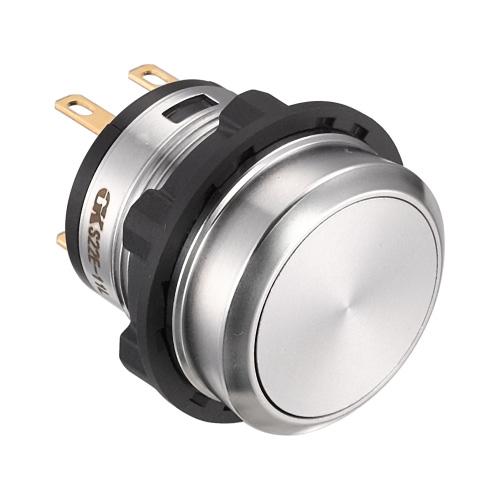

未标题-2
未标题-3
技术参数

Product type

Function

Non-Illuminated Pushbuttons

Series

S22

Front

Style

Flush、Rasied、flat\wide-brimmed

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating part

Lens material

SUS316

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO,2NC

Terminal

Solder/Tab terminal , PCB termianl,quickly connector, screw connector M12 connector

Other

Protection   degreen

IP67

Complete Device/Components

Complete evice


产品尺寸
S22 Vandal proof
资料文件
文件名称 类型 发布时间
S22 series Varal proof switch .PDF 08/08/2025 下载(4.75 MB)
